Octavia Mk1

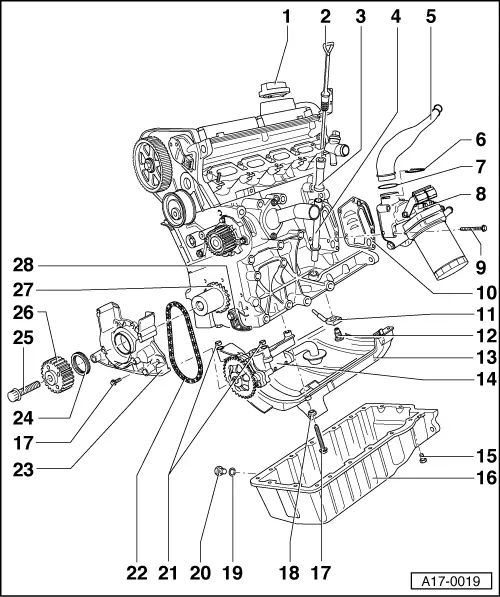

Disassembling and assembling oil filter holder |
1 - | 10 Nm |
2 - | Support |
3 - | Cable guide |
q | clipped into the bracket → Item |
4 - | Connecting tube |
q | between oil filter holder and connecting hose to intake hose |
5 - | Retaining clip |
q | check tightness |
6 - | O-ring |
q | replace if damaged |
7 - | 15 Nm |
q | Cut open gasket ring if leaking and replace |
8 - | Gasket ring |
q | replace |
9 - | 25 Nm |
10 - | Oil pressure switch 0,14 MPa -F1 -, 25 Nm |
q | black insulation |
q | Line: green/black |
q | check → Chapter |
q | Cut open gasket ring if leaking and replace |
11 - | 15 Nm + torque a further 90° (1/4 turn) |
q | replace |
12 - | Oil cooler |
q | Coat the contact surfaces outside the gasket ring with loctite -AMV 188 100 02 - |
q | ensure clearance to surrounding components |
q | connection diagram for coolant hoses → Chapter |
13 - | 25 Nm |
14 - | Oil filter |
q | slacken with tensioning strap |
q | Tighten filter with hexagon to 20 Nm |
q | tighten by hand |
q | pay attention to installation instructions on oil filter |
q | pay attention to change interval |
15 - | O-ring |
q | replace |
q | oil before installing |
16 - | 40 Nm |
17 - | Pressure relief valve |
q | opens at: 0.35...0.45 MPa overpressure |
q | Testing oil pressure and oil pressure switch → Chapter |
18 - | Gasket with slug panel |
q | replace |
q | Check fitting position |
19 - | Oil filter holder |
