Inspecting coolant system with cooling system testing device V.A.G 1274 for tightness

Inspecting coolant system with cooling system testing device -V.A.G 1274- for tightness

Special tools and workshop equipment required

t	Cooling system testing device, e.g. -V.A.G 1274-

t	Adapter, e.g. -V.A.G 1274/8-

t	Adapter, e.g. -V.A.G 1274/9-

Test condition

l	Engine must be warm.

Test sequence

WARNING

Hot steam may escape when the expansion reservoir is opened. Cover the cap with a cloth and open carefully.

–	Open the cap of the coolant expansion reservoir.

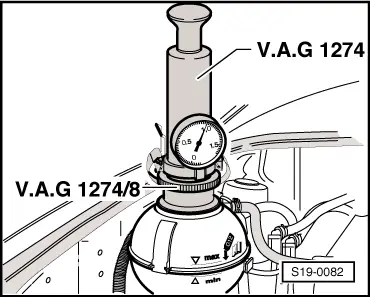

–	Position the cooling system testing device -V.A.G 1274- with adapter -V.A.G 1274/8- on the coolant expansion reservoir.

–	Using the hand pump of the testing device generate an overpressure of approx. 0.1 MPa (1 bar).

–	If the pressure drops determine positions of the leak and repair.

Testing the pressure relief valve in the cap

–	Screw cap onto tester with adapter -V.A.G 1274/9-.

–	Using the hand pump of the testing device generate an overpressure of approx. 0.16 MPa (1.6 bar).

–	The pressure relief valve should open at a pressure of 0.14 ... 0.16 MPa (1.4 ... 1.6 bar).

The pressure relief valve opens too early or too late.

–	Replace cap.
