Technical data

Engine number

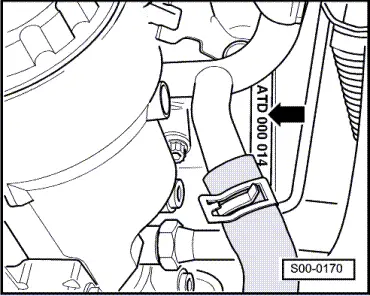

The engine number (“engine identification characters” and “serial number”) is located at the engine/gearbox joint -arrow-.

In addition, a sticker with the “engine identification characters” and “serial number” is affixed to the timing belt guard.

The engine identification characters are also indicated on the vehicle data sticker.

Engine characteristics

Engine identification characters		ATD	AXR
Manufactured		08.00 ? 12.05	10.05 ?
Exhaust limits conforming to		EU-3	EU-4
Displacement	l	1,896	1,896
Power output	kW at rpm	74/4000	74/4000
Torque	Nm at rpm	240/1800-2400	240/1800
Bore	Ø mm	79,5	79,5
Stroke	mm	95,5	95,5
Compression		19,0: 1	19,0: 1
Firing order		1-3-4-2	1-3-4-2
CN min.		49	49
Catalytic converter		yes	yes
Exhaust gas recirculation		yes	yes
Exhaust gas recirculation cooler		no	yes
Turbocharging		yes	yes
Charge air cooler		yes	yes
