Octavia Mk1

Removing and installing the rain sensor
Removing and installing the rain sensor
Removing
–  Removing rear-view mirror → Body work → Rep. Gr.68.
–  Remove interior light → Chapter.

–  Disconnect plug connection -2-.
–  Remove rain sensor -3-.
Install
–  Remove the cover -4- immediately before the installation (only for a new part).
–  Press the sensor on the window. During this procedure do not touch the sensor surface!
–  Connect the plug connection -2-.
–  Install interior light → Chapter.
–  Install rear-view mirror → Body Work → Rep. Gr.68.

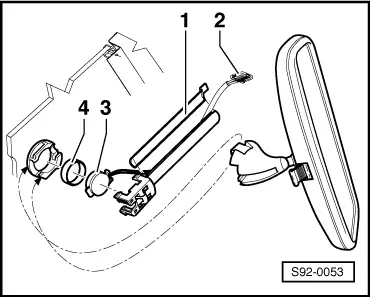

  S92-0053
