Switch for refrigerant circuit > < Connection for the quick-coupling adapter on the refrigerant circuit

Octavia Mk1

Parts for securing the refrigerant circuit
Parts for securing the refrigerant circuit

Pressure relief valve
The pressure relief valve is located on the compressor and opens in the event of overpressure. The refrigerant does not flow out completely. A plastic washer glued to a valve indicates if the valve was opened (it is pressed off).
Opening pressure: 4 ± 0.4 MPa
Closing pressure: 3.25 MPa
  Note
If the pressure relief valve was open, determine the cause of the overpressure in the system and adjust.

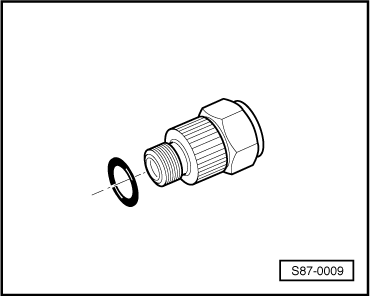

  S87-0009
Coil for magnetic coupling -N25-
t  An overheating fuse is built into the solenoid coil. The overheating fuse will cut out the solenoid coil as soon as (e.g. because of compressor resistance) the magnetic coupling starts overheating (approx. 180°C)
t  The solenoid coil also includes a protective diode (reduces voltage peaks that may occur when disconnecting the magnetic coupling).
  S87-0088
