Disassembling and assembling the output shaft
Disassembling and assembling the output shaft
Special tools and workshop equipment required
t  Drift -MP1-178-
t  Ejector -MP1-502-
t  Drift -MP3-403 (VW 295)-
t  Pressure washer -MP3-460 (VW 512)-
t  Pipe section -MP3-414 (VW 516)-
t  Pressure plate -MP3-407 (VW 402)-
t  Interior extractor -Kukko 21/6-
t  Separating device -Kukko 17/2-
t  Countersupport -Kukko 22/2-

  Note
t  When installing new pinions or a new output shaft observe the technical data → Chapter.
t  Replace both tapered-roller bearings together.
t  Do not over-tension the circlips. Always replace damaged or over-tensioned circlips.
t  If the clutch housing, output shaft (drive train) or tapered-roller bearing is replaced, it is necessary to adjust the output shaft → Chapter.

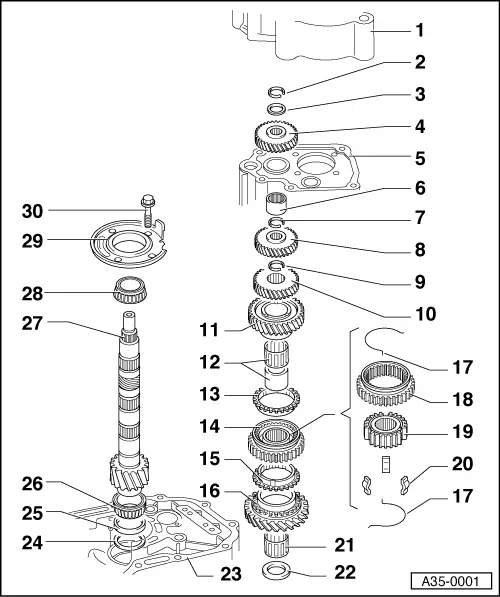

1 - Cover for gearbox housing
2 - Circlip for 5th gear pinion
3 - Thrust washer
4 - 5th gear pinion
q   removing and installing → Chapter
5 - Gearbox housing
6 - Needle bearing
q   removing and installing → Chapter
7 - Circlip for 4th gear pinion
8 - 4th gear pinion
q   Fitting position → Chapter
9 - Circlip for 3rd gear pinion
q   Determining thickness again → Chapter
10 - 3rd gear pinion
q   Fitting position → Chapter
q   Set axial play → Chapter
11 - 2nd gear sliding gear
12 - Needle bearing for 2nd gear sliding gear
q   Pull off inner ring → Chapter
q   Press on inner ring → Chapter
13 - 2nd gear synchronizer ring
q   check for wear → Fig.
14 - Sliding sleeve with 1st and 2nd gear synchronizer body
q   Assembling sliding sleeve/synchronizer body → Fig. and → Fig.
q   removing and installing → Chapter
15 - 1st gear synchronizer ring
q   check for wear → Fig.
q   Identification → Fig.
16 - 1st gear sliding gear
17 - Spring
18 - Sliding sleeve
19 - Synchronizer body
20 - Arresters
q   3 pieces
21 - Needle bearing
q   for 1st gear
22 - Thrust washer
q   Fitting position → Chapter
23 - Clutch housing
24 - Adjusting washer
q   for output shaft
q   Setting overview → Chapter
25 - Outer ring/tapered-roller bearing small
q   removing → Fig.
q   installing → Fig.
26 - Inner ring/tapered-roller bearing small
q   pressing off → Fig.
q   pressing on → Fig.
27 - Output shaft
q   is paired with the gear pinion of the final drive, when replacing they must both be replaced
q   adjust → Chapter
28 - Inner ring/tapered-roller bearing large
q   pressing off → Fig.
q   pressing on → Fig.
29 - Bearing support
q   with outer ring/tapered-roller bearing large and stop for reverse gear
q   Always replace outer ring together with tapered-roller bearing large and bearing support
30 - 25 Nm and torque a further 90°


Check 1st and 2nd gear snychronizer ring for wear
–  Press the synchronizer ring on the cone of the sliding gear and measure clearance -a- with a feeler gauge.
  V35-0022
Clearance -a-Fitting dimensionWear limit
1st and 2nd gear1.1…1.7 mm0.5 mm


Identification of the 1st gear synchronizer ring
Identification: every 3 x 1 tooth missing -arrow-.
This synchronizer ring must only be installed on the 1st gear.
  V35-0465
Assemble sliding sleeve with synchronizer body for 1st and 2nd gear
Fitting position of synchronizer body:
The groove marking on the front side -arrow- points to the outer serration of the sliding sleeve.
–  Slide the sliding sleeve over the synchronizer body.
The recesses for the arresters on the synchronizer body and the sliding sleeve must be positioned above one another.
  V35-0919
Assembly of the sliding sleeve/synchronizer body for 1st and 2nd gear
–  Insert arresters and mount springs with 120° offset. The angled end of the spring must grip into the hollow arrester.
  V34-0581
Removing outer ring/tapered-roller bearing small
A - Interior extractor 37...46 mm, e.g. -Kukko 21/6-
B - Countersupport, e.g. -Kukko 22/2-
  V35-0781
Pressing in small outer ring/tapered-roller bearing
  S35-0042
Press off small inner ring/tapered-roller bearing
A - Separating device 22...115 mm, e.g. -Kukko 17/2-
  Note
The inner ring can also be removed with the tapered-roller bearing extractor -V.A.G 1582- and the gripper -V.A.G 1582/5-.
  S35-0043
Pressing off large inner ring/tapered-roller bearing
A - Separating device 22...115 mm, e.g. -Kukko 17/2-
  Note
The inner ring can also be removed with the tapered-roller bearing extractor -V.A.G 1582- and the gripper -V.A.G 1582/7-.
  S35-0044
Heat inner rings for small and large tapered-roller bearings to approx. 100°C, place in position and press down.
  S35-0045
