Octavia Mk1
| V-ribbed belt - Summary of components |
Note| t | The following figure shows the belt drive of vehicles without air conditioning. |
| t | Mark the rotation direction before removing the V-ribbed belt. Reversing the rotation direction of an already used belt may destroy it. Pay attention to the correct position of the V-ribbed belt in the belt pulley when installing it. |
| t | Removing and installing AC compressor → Heating, Air Conditioning; Rep. gr.87. |
| 1 - | Tensioning device for V-ribbed belt |
| q | turn tensioning device for V-ribbed belt with open-end wrench to slacken the V-ribbed belt → Chapter |
| 2 - | 25 Nm |
| 3 - | Support |
| q | pay attention to different version |
| 4 - | Belt pulley/vibration dampener |
| q | can be installed only in one position |
| 5 - | AC generator |
| q | to facilitate the positioning of the generator on the holder, push back the threaded bushings for the retaining screws |
| 6 - | Bracket for auxiliary units |
| q | for tensioning pulley of ribbed V-belt, alternator, hydraulic pump for power-assisted steering and AC compressor |

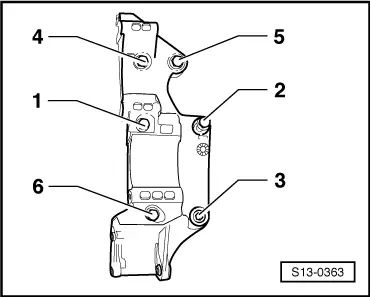

| q | order of tightening → Fig. |
| 7 - | 45 Nm |
| 8 - | Vane pump |
| q | to facilitate the positioning of the hydraulic pump on the holder drive the threaded bushings of the retaining screws slightly backwards |
| q | removing and installing → Chassis; Rep. gr.48 |
| 9 - | Belt pulley |
| q | for vane pump |
| 10 - | V-ribbed belt |
| q | before removing mark running direction |
| q | check for wear |
| q | do not kink |

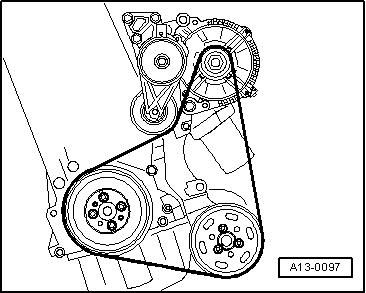

| q | routing of ribbed V-belt on vehicles without air conditioning → Fig. |
| q | routing of ribbed V-belt on vehicles with air conditioning → Fig. |
| q | engines fitted with an AC compressor are equipped with a double ribbed V-belt |
|
|
Note
|
|
|
|
