Interior rear-view mirror > < Partition panel and protective grating (Praktik)

Roomster

Removing and installing floor plate
Removing and installing floor plate
Removing:
–  Remove screws -2- (2,5 Nm).

–  Fold together front and rear partitioned floor -1-.
–  Remove the floor -1- upwards.
–  When removing the lifting eyes (Pos. 6), remove the screw (Pos. 5) (17 Nm) .
Installing:
–  Installation is carried out in the reverse order.

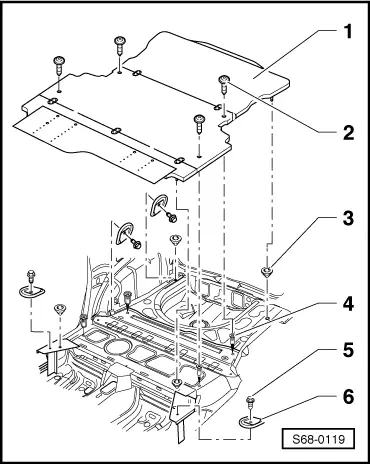

  S68-0119
