Roomster

Removing and installing the rear seat
Removing and installing the rear seat
Removing:

–  Release securing mechanism -2- for seat backrests in the -direction of arrow A-.
–  Fold back seat backrests -1- in the -direction of arrow B-.
  S72-0131

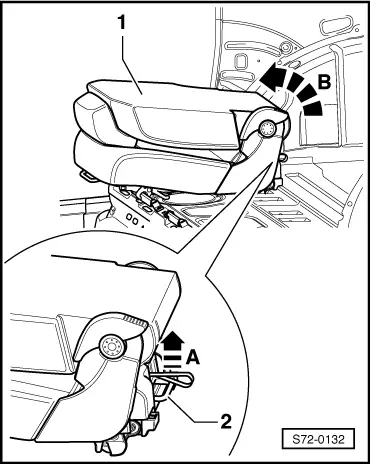

–  Release securing mechanism -2- in the -direction of arrow A-.
–  Fold back seat -1- in the -direction of arrow B-.
  S72-0132

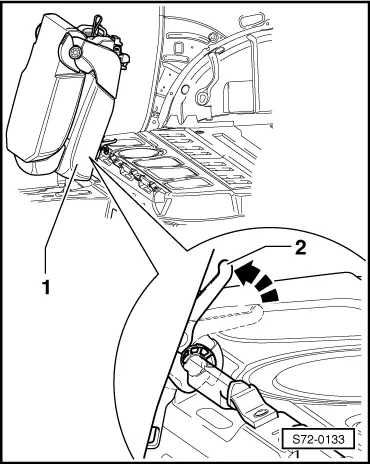

–  Release seat securing mechanism -2- in the -direction of arrow-.
–  Raise seat -1- in vertical position.
–  Grab seat in rear area at handle.
–  Raise seat and remove from vehicle.
Installing:
–  Installation is carried out in the reverse order.
  S72-0133
