Removing and installing the rear door trim panel (Praktik)

Special tools and workshop equipment required

t	Removal tool for the inner lining of the door panel -MP8-602/1-.

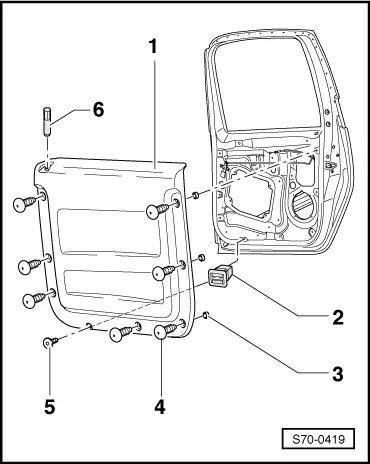

Removing:

–	Remove screw -5- (0.7 Nm) from the insertion nut -2-.

–	Remove locking pin -6- from the linkage (for vehicles without central locking).

–	Lever off the trim panel -1- at the sides from the clips -4- with e.g. removal tool for the inner lining of the door panel -MP8-602/1-.

Note

Do not damage the painted surfaces.

–	Remove door trim panel -1-.

Installing:

–	Insert clips -4- into the door trim panel -1-.

–	Position adjusting washers -3- on clips -4-.

–	Clip trim panel -1- into the door.

–	Install screws -5-.
