Roomster
| Summary of components of parts of the cooling system on the side next to the body |

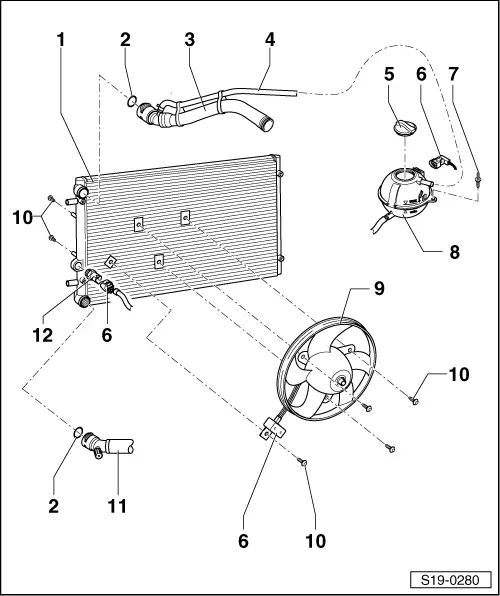

| Vehicles without air conditioning |
| 1 - | Radiator |
| q | only complete with radiator fan → Item |
| q | removing and installing → Chapter |
| q | after replacing fill entire system with fresh coolant → Chapter |
| 2 - | O-ring |
| q | replace |
| 3 - | Top coolant hose |
| q | check tightness |
| q | connection diagram for coolant hoses → Chapter |
| 4 - | Coolant hose |
| q | for crankcase ventilation preheating at intake manifold |
| 5 - | Screw cap |
| q | with the overpressure valve |
| q | Test pressure 0.14...0.16 MPa (1.4...1.6 bar) |
| 6 - | Connector |
| 7 - | Double screw, 2 Nm |
| 8 - | Expansion reservoir |
| q | with coolant shortage warning light sender -G32- |
| q | Check the cooling system for tightness → Chapter |
| 9 - | Radiator fan -V7- |
| q | screwed onto radiator |
| q | can be replaced separately |
| 10 - | 5 Nm |
| 11 - | Bottom coolant hose |
| q | check tightness |
| q | connection diagram for coolant hoses → Chapter |
| 12 - | Thermo-switch for radiator fan -F18-, 35 Nm |
| q | switching temperatures |
| 1. Stage |
| t | on: 92 ... 97 °C |
| t | off: 84 ... 91 °C |
| 2. Stage |
| t | on: 99 ... 105 °C |
| t | off: 91 ... 98 °C |

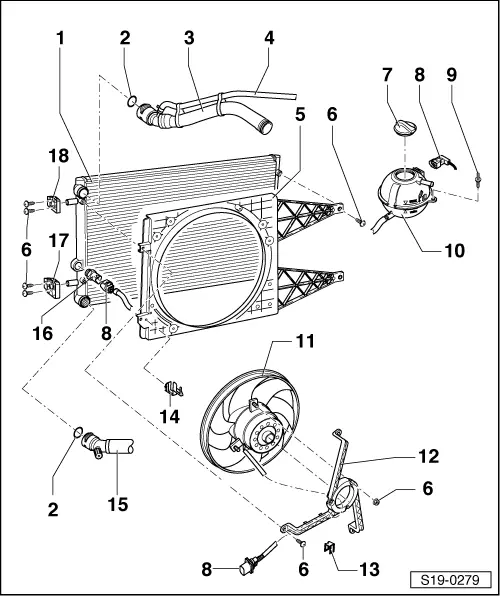

| Vehicles with air conditioning |
| 1 - | Radiator |
| q | removing and installing → Chapter |
| q | after replacing fill entire system with fresh coolant → Chapter |
| 2 - | O-ring |
| q | replace |
| 3 - | Top coolant hose |
| q | check tightness |
| q | connection diagram for coolant hoses → Chapter |
| 4 - | Coolant hose |
| q | for crankcase ventilation preheating at intake manifold |
| 5 - | Fan shroud |
| 6 - | 10 Nm |
| 7 - | Screw cap |
| q | with the overpressure valve |
| q | Test pressure 0.14...0.16 MPa (1.4...1.6 bar) |
| 8 - | Connector |
| 9 - | Double screw, 2 Nm |
| 10 - | Expansion reservoir |
| q | with coolant shortage warning light sender -G32- |
| q | Check the cooling system for tightness → Chapter |
| 11 - | Radiator fan -V7- |
| 12 - | Support |
| q | for fan |
| 13 - | Retaining clip |
| q | for fan cable |
| 14 - | Support |
| q | for plug of fan |
| 15 - | Bottom coolant hose |
| q | check tightness |
| q | connection diagram for coolant hoses → Chapter |
| 16 - | Thermo-switch for radiator fan -F18-, 35 Nm |
| q | switching temperatures |
| 1. Stage |
| t | on: 92 ... 97 °C |
| t | off: 84 ... 91 °C |
| 2. Stage |
| t | on: 99 ... 105 °C |
| t | off: 91 ... 98 °C |
| 17 - | Bottom radiator bearing |
| q | black |
| 18 - | Top radiator bearing |
| q | white |
