Roomster

Identification of the gearbox
Identification of the gearbox
Edition 10.2011, Version 5.0
Assignment (Fabia II) → Chapter
Assignment (Roomster) → Chapter
Assignment (Rapid) → Chapter

Location on the gearbox
Identification characters and production date -arrow 1-.
Identification of gearbox 02R -arrow 2-.
  V34-1964

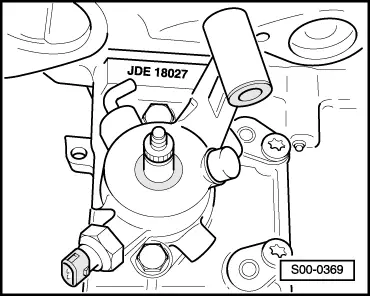

Identification characters and production date of the gearbox
  S00-0369
Example:JDE18027
 IIII
 Identification charactersDayMonthManufacturing year (2007)

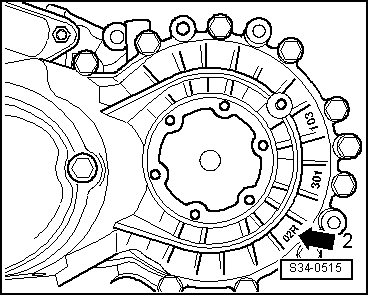

Identification of gearbox 02R -arrow 2-.
  S34-0515
