Removing and installing steering column switch
Removing and installing steering column switch
Removing
–  Remove steering wheel → Body Work; Rep. gr.69.
  Note
t  The steering wheel must be in its central position (wheels in straightahead position) before removing the steering column.
t  There is no positioning pin present on the restoring ring, which would lock it against inadvertent twisting after removing the steering wheel.

–  Remove top and bottom steering column trim panel, make sure that the restoring ring -1- does not twist out of its position → Body Work; Rep. gr.70.

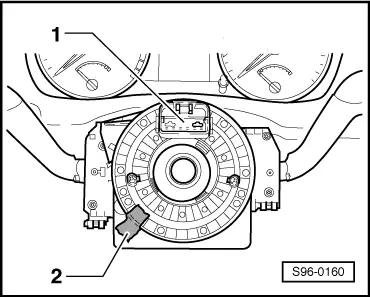

–  Lock restoring ring with slip ring with adhesive tape -2- or transport security in centre position (top connector -1- must be in horizontal position).
  S96-0160

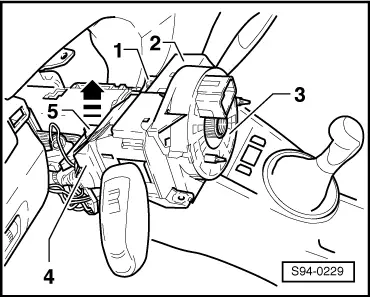

–  Release securing screw -1-.
–  Unlock plug -4- by pulling out the positioning pin -5- upwards -arrow-.
–  Move steering column switch -2- with restoring ring -3- from the steering column.
–  If necessary remove restoring ring with slip ring → Chapter.
Install
Installation is performed in the reverse order, pay attention to the following points:
–  When removing, the wheels must be in the straightahead position.
–  Restoring ring with slip ring must be in the centre position.
–  Do not forget to remove the adhesive tape or the transport security from the restoring ring before installing the steering wheel.
–  Observe correct mounting sequence of steering wheel and airbag → Body Work; Rep. gr.69.
  Note
In case of doubt that the restoring ring is in the centre position, set the centre position of the restoring ring → Chapter.
  S94-0229
