Removing and installing the V-ribbed belt pulley on the AC generator
Removing and installing the V-ribbed belt pulley on the AC generator
Special tools and workshop equipment required
t  Socket insert -T30032-
–  Remove ribbed V-belt and/or generator → Chapter.

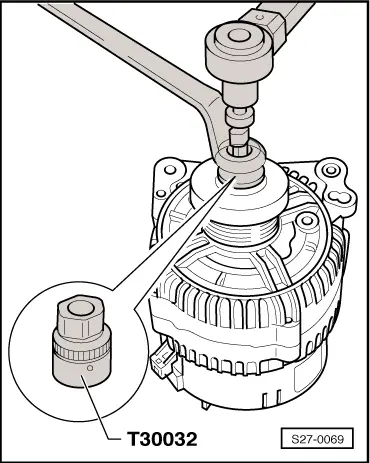

–  Remove the V-ribbed belt pulley using the socket insert -T30032-.
Removal - turn the alternator shaft to the right.
Installation - turn the alternator shaft to the left.
Tightening torque: 65 Nm
  S27-0069
