Superb

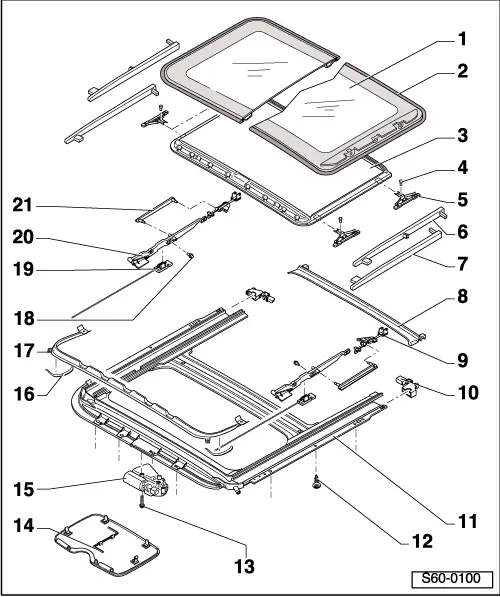

| Summary of components of sliding/tilting roof with glass panel |
| 1 - | Glass panel for sliding/tilting roof (single-layer safety glass) |
| 2 - | Gasket |
| 3 - | Sun screen |
| 4 - | 3.5 Nm |
| q | replace |
| 5 - | Sliding block |
| 6 - | Guard top |
| 7 - | Guard bottom |
| 8 - | Rain groove |
| q | remove together with sliding block guide Pos. 20 |
| 9 - | Guide clip |
| 10 - | Stop buffer |
| q | use butyl glue / sealing cord -AKL 450 005 05- to seal |
| 11 - | Assembly unit |
| q | use lock cylinder grease spray -G 052 778 A2- for the guiding grooves otherwise the correct functions are not guaranteed |
| 12 - | 8 Nm |
| 13 - | 3.5 Nm |
| q | replace |
| 14 - | E-drive cover |
| q | Crank handle for emergency activation is fixed to the cover |
| 15 - | E-drive |
| q | Check setting for E-drive “(0 position)” → Chapter |
| 16 - | Spring |
| 17 - | Draft deflector |
| 18 - | 4.5 Nm |
| 19 - | Guide piece with control cable |
| q | remove together with sliding block guide Pos. 20 |
| 20 - | Sliding-block guide |
| 21 - | Expanding piece |
| q | remove together with sliding block guide Pos. 20 |
