Superb

Inspect water drain valve
Inspect water drain valve

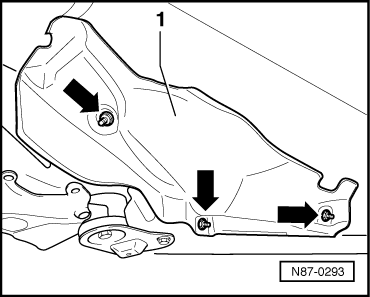

–  Unscrew the fixing nuts -arrows- on the right of the catalytic converter shield -1-.
–  Remove shield for catalytic converter.
Check the following to ensure perfect operation of the water drain valve:
t  The water drain valve must not stick.
t  The opening of the water drain valve cap must point downwards.
t  The right catalytic converter shield must neither be deformed nor damaged near the water drain valve.
  N87-0293

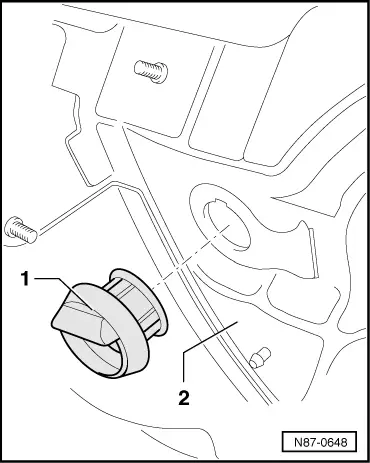

–  Remove the water drain valve -1- from the bulkhead -2-.
  N87-0648
