Superb

Inspecting ventilation
Inspecting ventilation
  Note
t  The used air escapes via ventilation openings in the luggage compartment trim panels.
t  To ensure perfect ventilation the ventilation openings must not be covered.
t  The ventilation frames are located to the right and left in the side section behind the bumper.
Inspection
–  Remove rear bumper → Body Work → Rep. Gr.63.

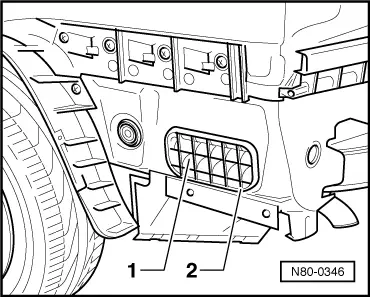

The sealing lips -1- in the ventilation frame -2- must be free and close independently.
  N80-0346
