Removing and installing the additional relay carrier with an additional fuse holder
Removing and installing the additional relay carrier with an additional fuse holder
  Note
The additional relay carrier with additional fuse holder are located under the storage compartment on the driver's side behind the relay plate and the 13-pin relay carrier
Removing
–  Remove the relay plate and 13-pin relay carrier → Chapter.

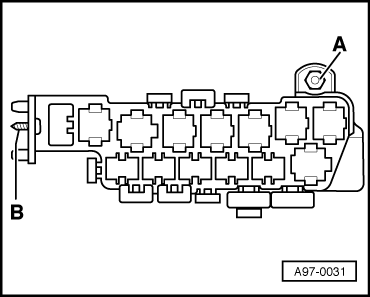

–  Unscrew the securing nut -A- (2 Nm) and screw -B-.
–  Remove the relay and control units from the additional relay carrier and then unclip the relevant relay carrier.
–  Pull out the additional relay carrier from its holder and remove downwards.
Install
–  Installation is carried out in the reverse order.
  A97-0031
