B9 Tribeca F6-3.0L DOHC (2006)

Page 8
background image

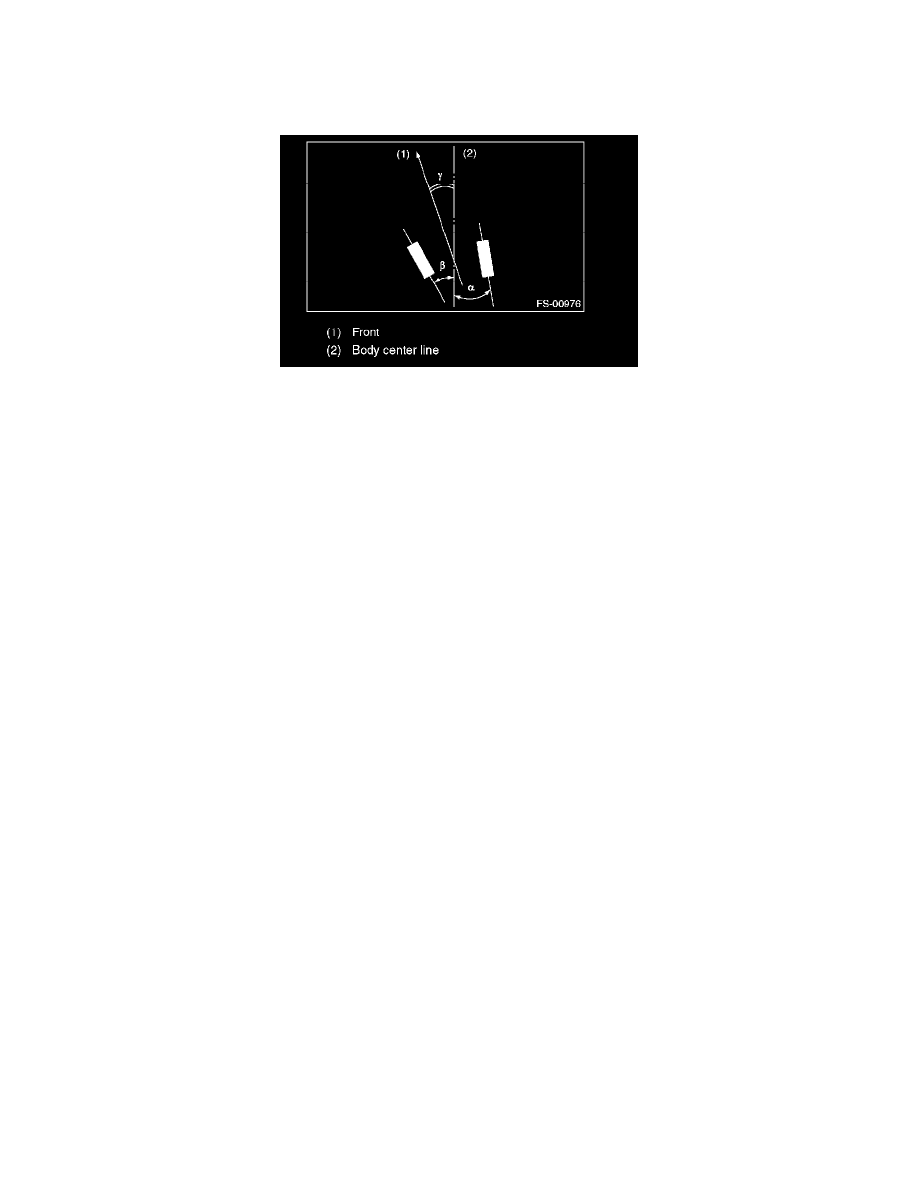

Thrust angle: r = ( a - B)/2
: Rear RH wheel toe-in angle
: Rear LH wheel toe-in angle
Substitute only the positive toe-in values from each wheel into ->and ->in the equation.
