Alignment (Front Suspension): Specifications
- Make
- Subaru
- Model
- B9 Tribeca F6-
- Engine
- 3.0L DOHC
- Year
- 2006
- Section
- Alignment › Specifications › Front Suspension
MaintenanceFront Suspension · page 1 of 2

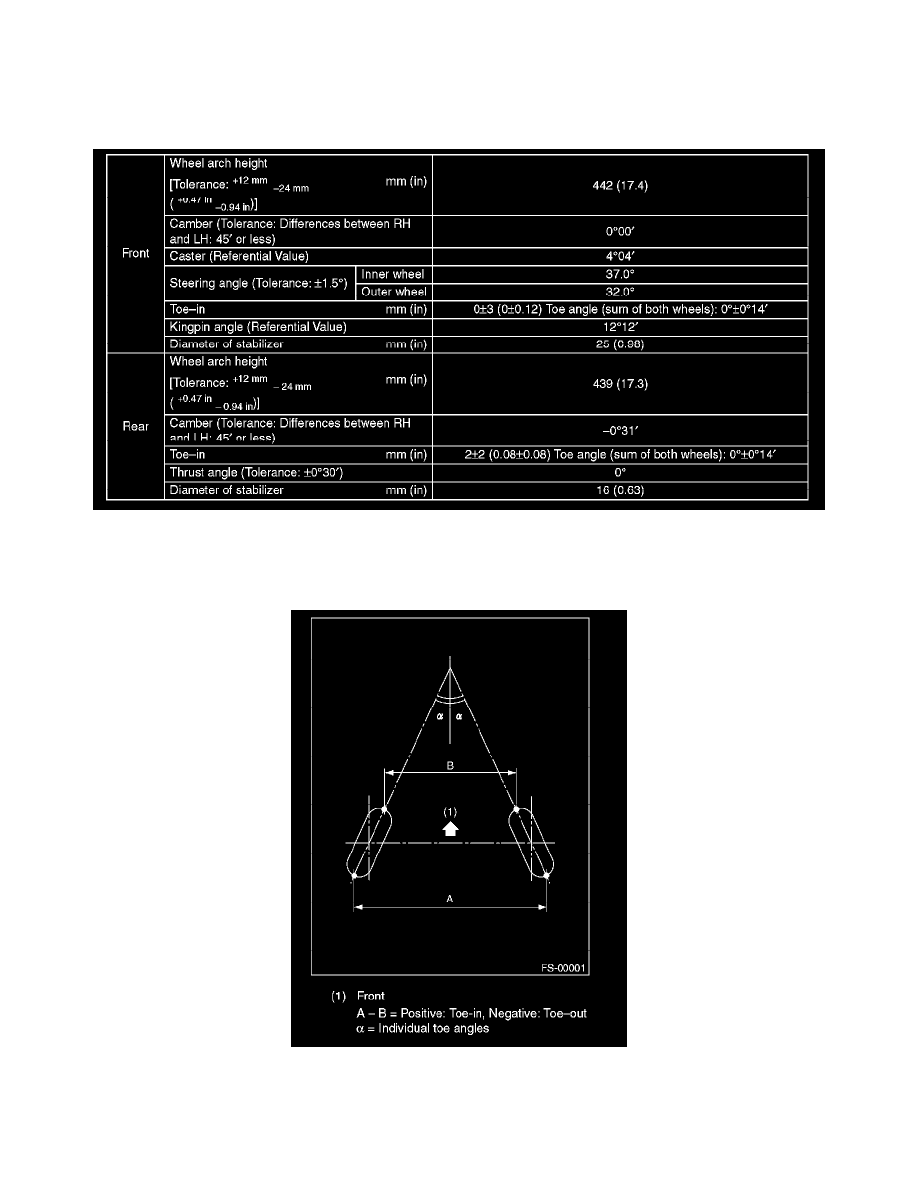

Alignment: Specifications
Front Suspension
General Description
SPECIFICATION
NOTE:
^
Front and rear toe-in and front camber can be adjusted. Adjust if the toe-in or camber tolerance exceeds specifications.
^
Other items indicated in the specifications table cannot be adjusted. If other items exceed specifications, check the suspension parts and
connections for deformation, and replace with new ones as required.
