Trunk / Liftgate Interior Trim Panel: Service and Repair
Rear Gate Panel Trim

REAR GATE PANEL TRIM

REMOVAL

CAUTION:  Be careful not to damage the clips or their holes.

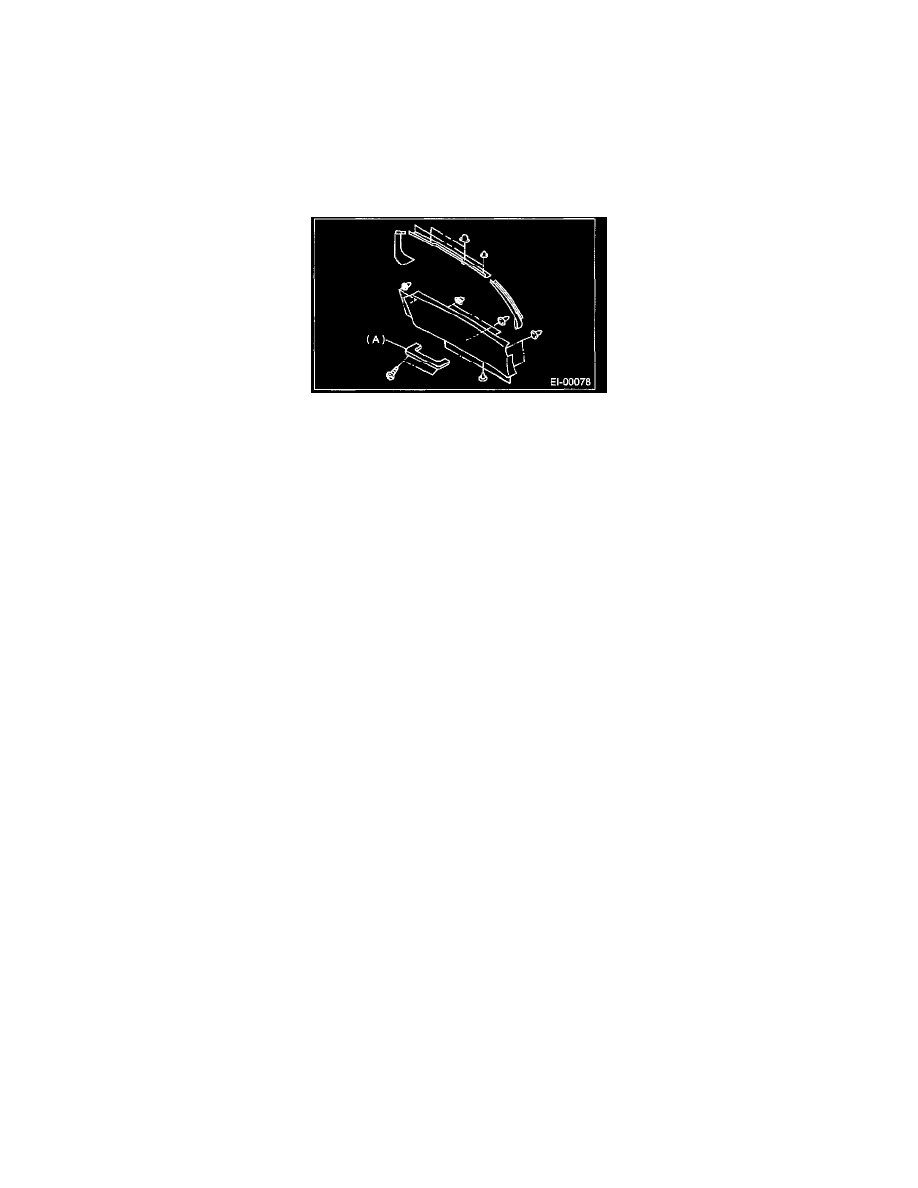

Remove the rear gate inner handle (A) from rear gate and then detach trim panel.

INSTALLATION

Install in the reverse order of removal.
