Carpet: Service and Repair

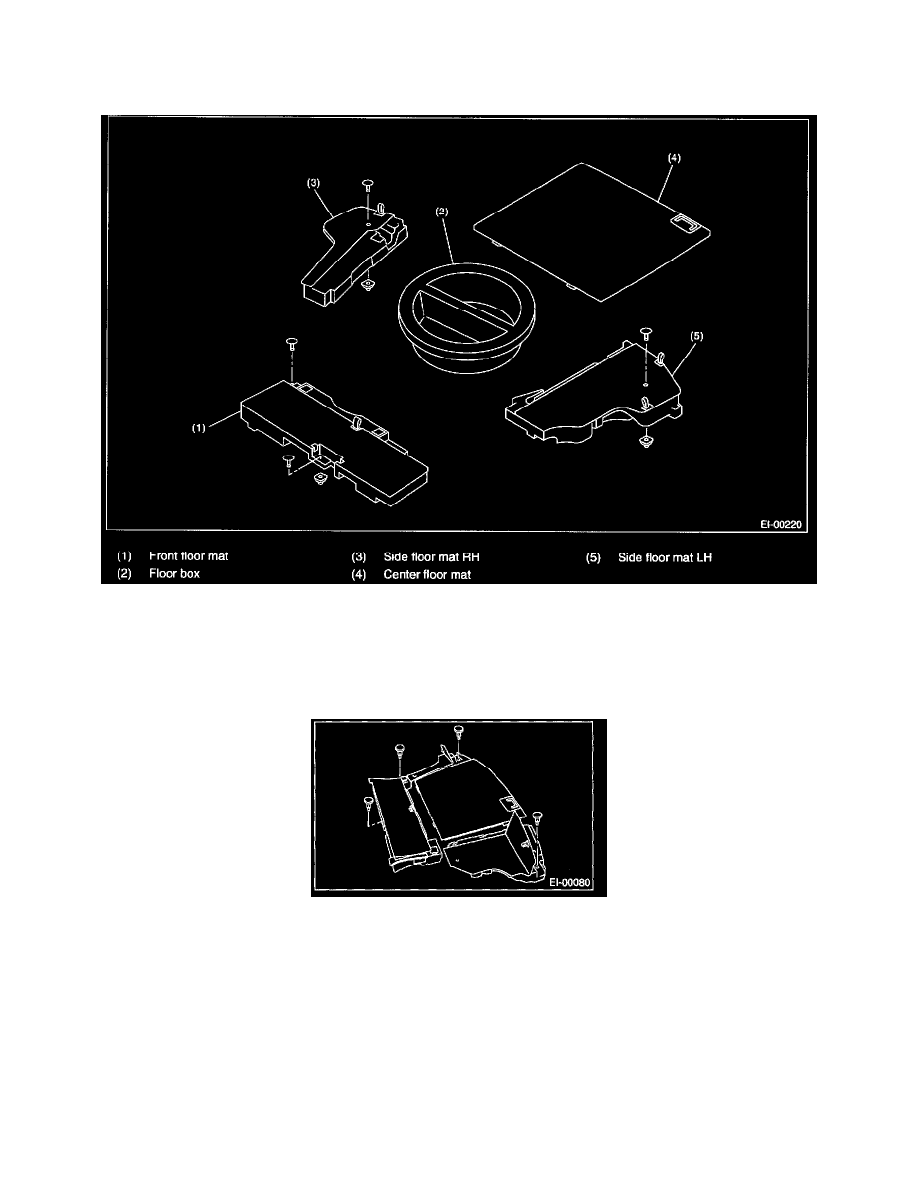

Luggage Floor Mat

LUGGAGE FLOOR MAT

Luggage Floor Mat

REMOVAL

1. Remove the back mat of rear seat backrest.
2. Remove the clips, then detach the rear floor mats and boxes.

INSTALLATION

Install in the reverse order of removal.
