Forester F4-2.5L SOHC (2004)

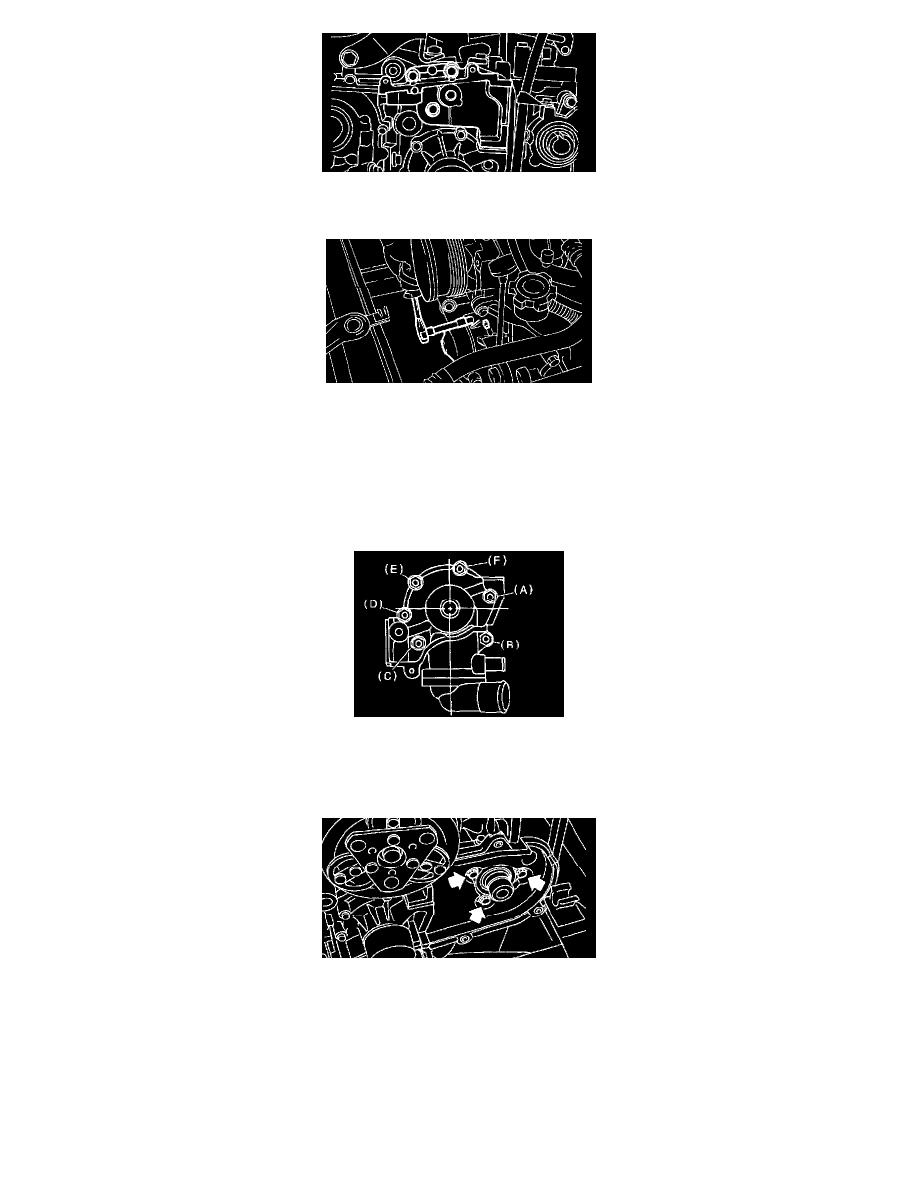

8. Remove the tensioner bracket.
9. Disconnect the heater by-pass hose from water pump.
10. Remove the water pump.
INSTALLATION
1. Install water pump onto cylinder block (LH).
NOTE:
^
Replace the gasket with a new one.
^
When installing the water pump, tighten bolts in two stages in alphabetical sequence as shown in the figure.
Tightening torque:
First: 12 Nm (1.2 kgf-m, 8.7 ft. lbs.)
Second: 12 Nm (1.2 kgf-m, 8.7 ft. lbs.)
2. Connect the heater by-pass hose to water pump.
3. Install the belt cover No. 2 (LH).
Tightening torque: 5 Nm (0.5 kgf-m, 3.6 ft. lbs.)
