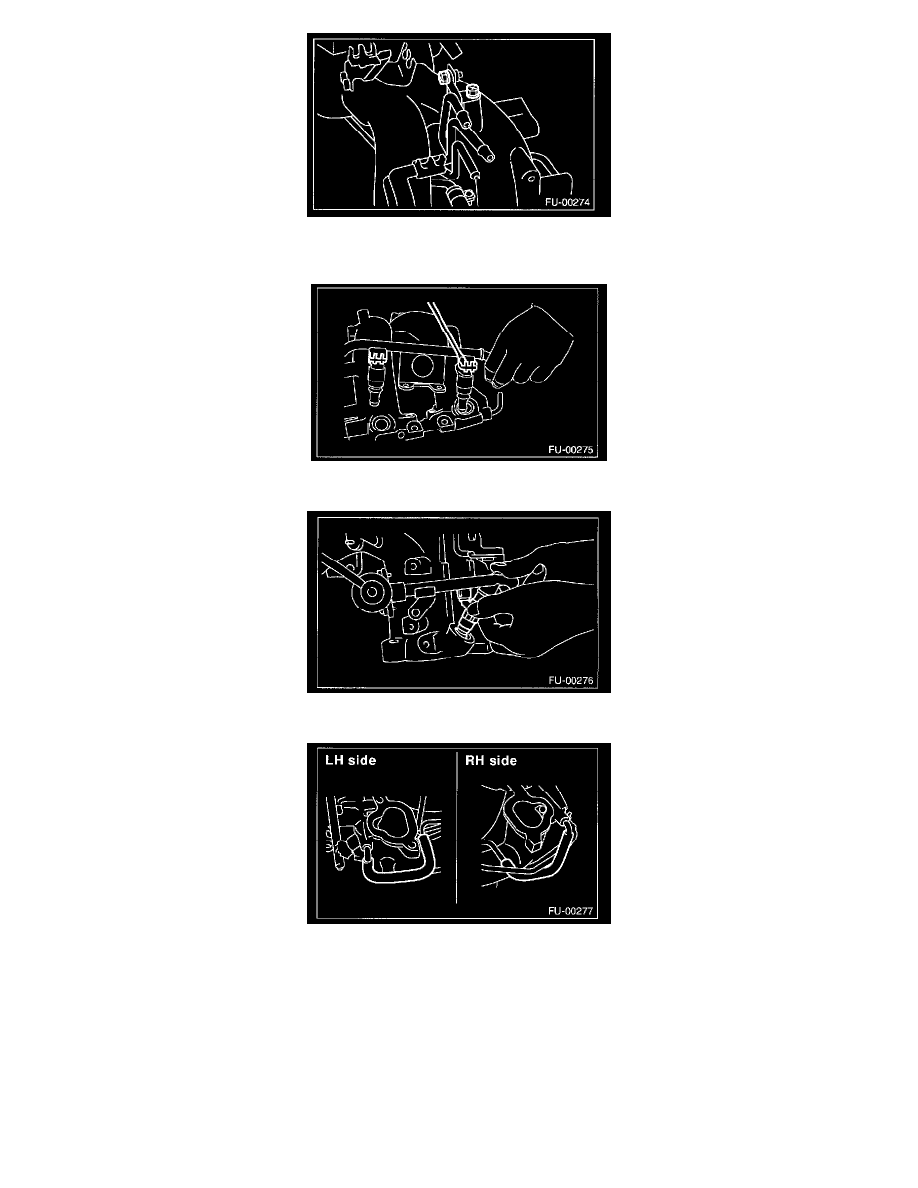

17. Remove the two bolts which hold fuel pipes on the left side of intake manifold.
18. Remove the fuel injectors.

1. Remove the fuel injector securing clip.

2. Remove the fuel injector while lifting up the fuel injector pipe.

19. Disconnect the air by-pass hoses from the intake manifold.
