Evaporator Temperature Sensor / Switch: Testing and Inspection

EVAPORATOR SENSOR

Wiring Diagram

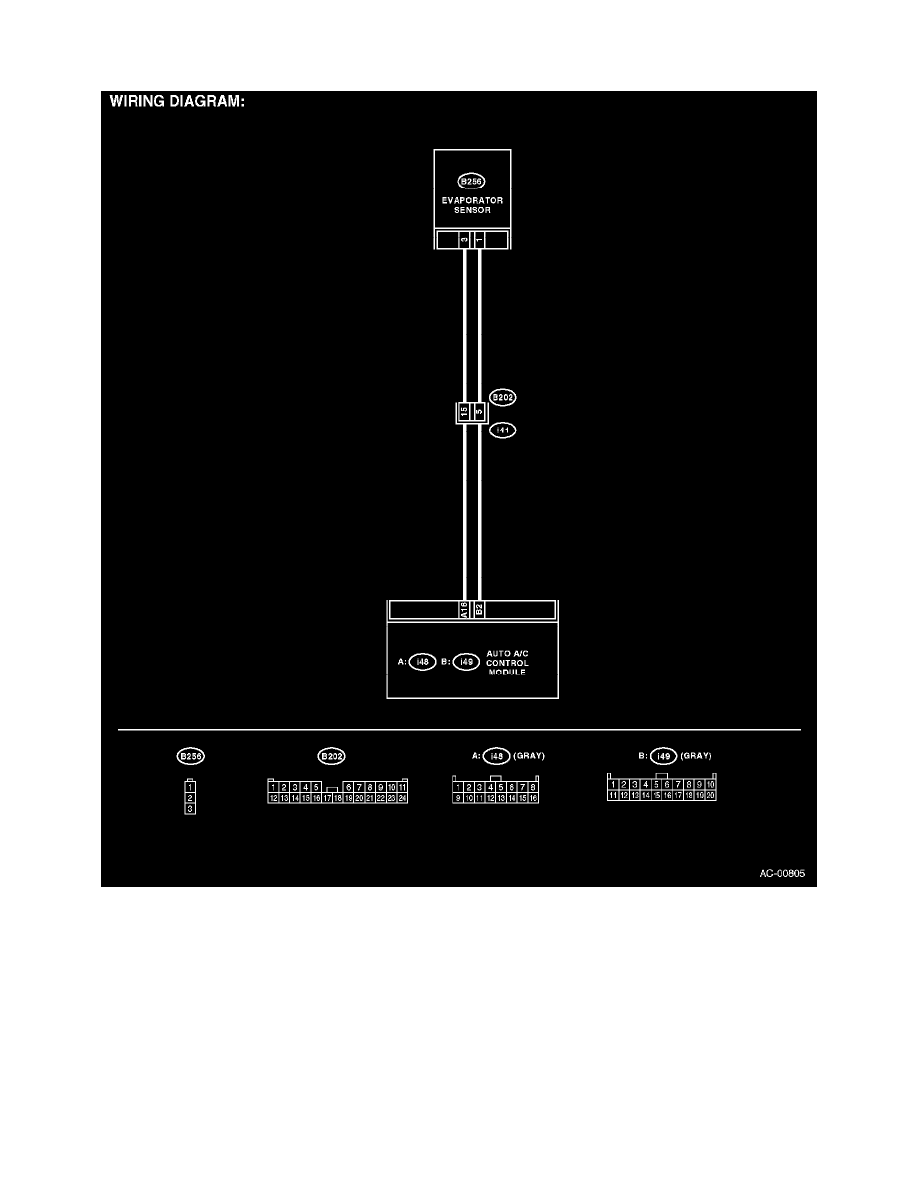

WIRING DIAGRAM:
