Forester F4-2.5L SOHC (2004)

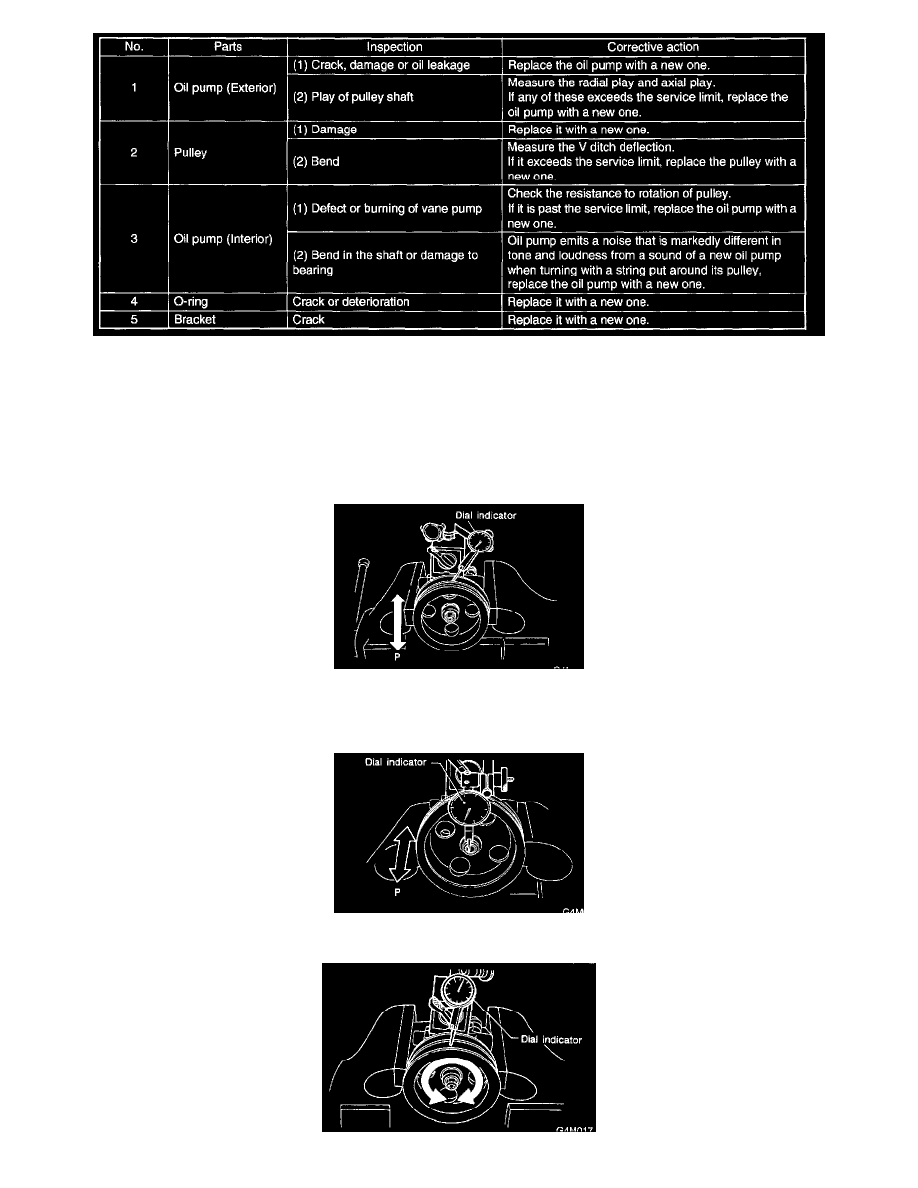

Perform the following inspection procedures and repair or replace defective parts
SERVICE LIMIT
Make a measurement as follows. If it exceeds the specified service limit, replace the parts with new ones.
CAUTION:
^
Fix the oil pump on a vise to make a measurement. At this time, hold the oil pump with least possible force between two wood pieces.
^
Do not set outside of flow control valve or pulley on a vise; otherwise outside or pulley might be deformed. Select properly sized wood pieces.
1) Play of the pulley shaft
Condition: When applying the force of 9.8 N (1.0 kgs, 2.2 lbs.)
Service limit: Radial play (Direction <-->) 0.4 mm (0.016 inch) or less
Axial play (Direction <--> ) 0.9mm (0.035 inch) or less
