Forester F4-2.5L SOHC (2004)
2) Ditch deflection of pulley
Service limit: 1.0 mm (0.039 inch) or less
NOTE: Read the value for one surface of V ditch, and then the value for another off the dial.

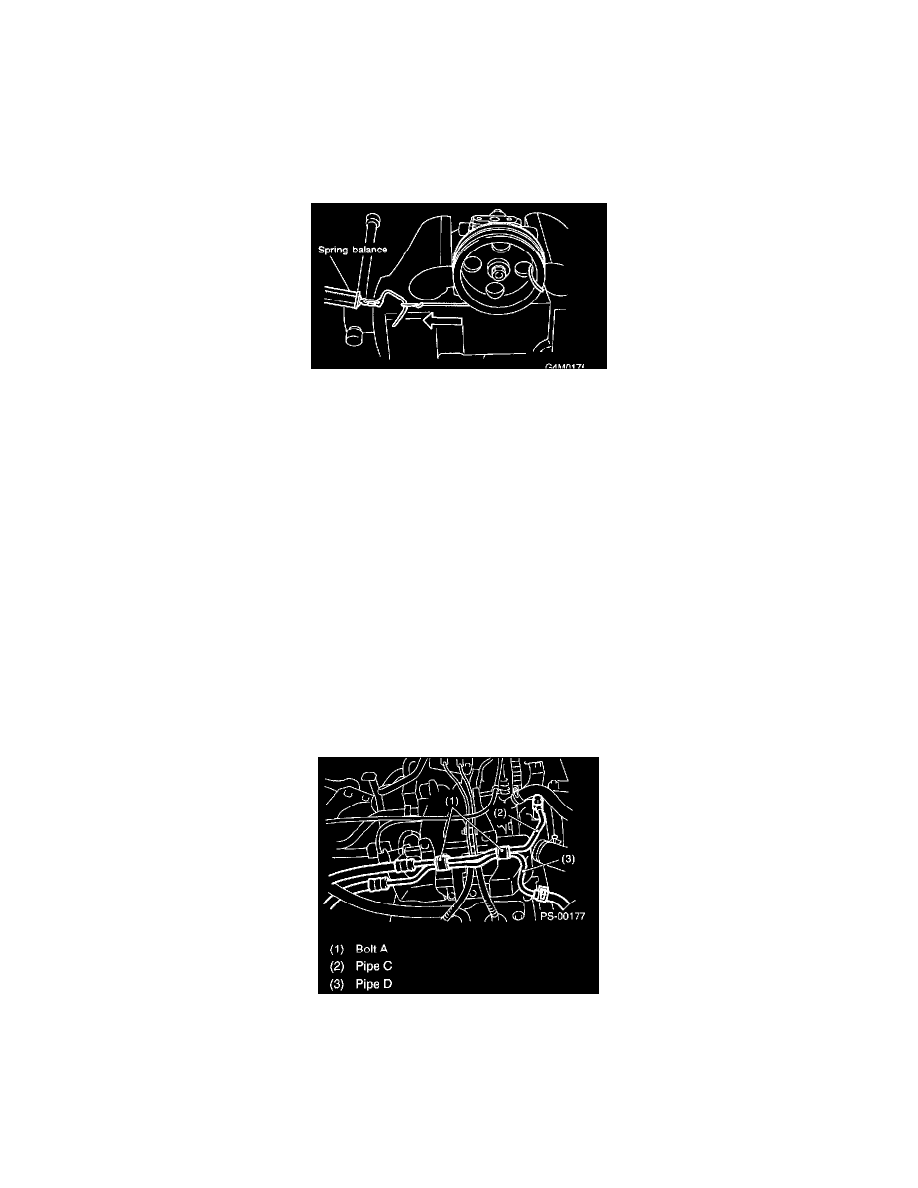

3) Resistance to rotation of pulley
Service limit:
Maximum load; 9.22 N (0.94 kgs, 2.07 lbs.) or less
NOTE:
^
A rather higher value may be indicated when pulley starts turning.
^
Measure the load during rotation and make a judgment.
HYDRAULIC PRESSURE
NOTE:
^
Be sure to complete all items aforementioned in "INSPECTION", prior to measuring hydraulic pressure. Otherwise, pressure can not be
measured correctly.
^
Do not leave the valve of pressure gauge closed or hold the steering wheel at stop end for 5 seconds or more in any case, as the oil pump may
be damaged due to long keep of these conditions.
^
Put a cotton cloth waste at a place where fluid drops before the pressure gauge is installed. Wipe off split fluid thoroughly after the
measurement.
1) REGULAR PRESSURE MEASUREMENT
1) Connect the ST1, ST2 and ST3.
ST1 92511000 PRESSURE GAUGE
ST2 34099AC020 ADAPTER HOSE B
ST3 34099AC010 ADAPTER HOSE A
2) Remove the air intake duct.
3) Disconnect the pipe C from the pump.
4) Using the gasket (Part No. 34621 AC021) and bolt (Part No. 34620AC010), install the ST2 to the pump instead of pipe C.
5) Install the ST3 to end of pipe C removed from pump.
6) Replenish power steering fluid up to the specified level.
7) Open the valve, and start the engine.
