Stabilizer Link: Technical Service Bulletins

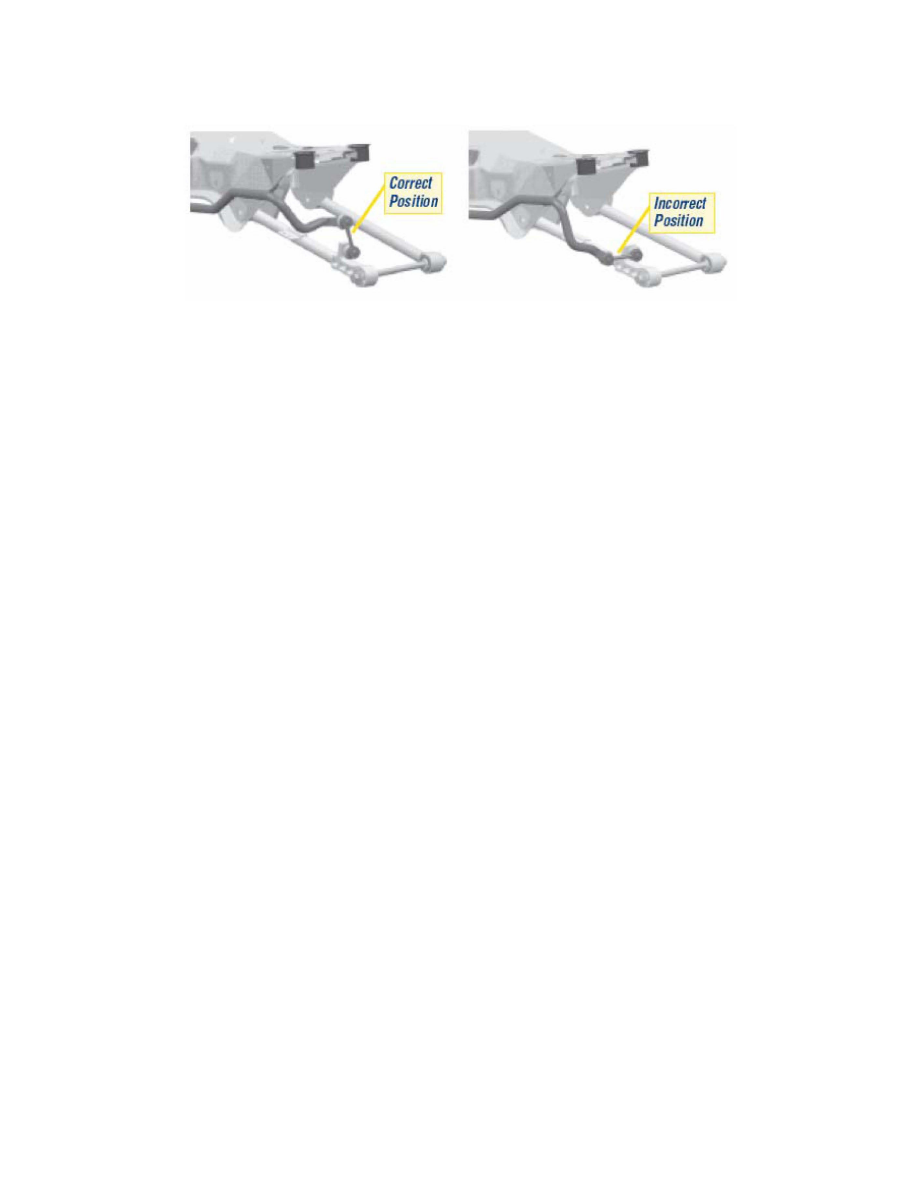

Suspension - Rear Stabilizer Link Positioning

05 REAR STABILIZER LINK POSITIONING

(2004MY and after Impreza Vehicles; 2003MY and after Forester Vehicles) When you are servicing or replacing rear suspension components there is
the possibility that the position of the rear stabilizer link can change unintentionally. Make sure the rear stabilizer link is positioned properly; failure to
do so could cause damage to the link.
