Forester F4-2.5L SOHC (2004)

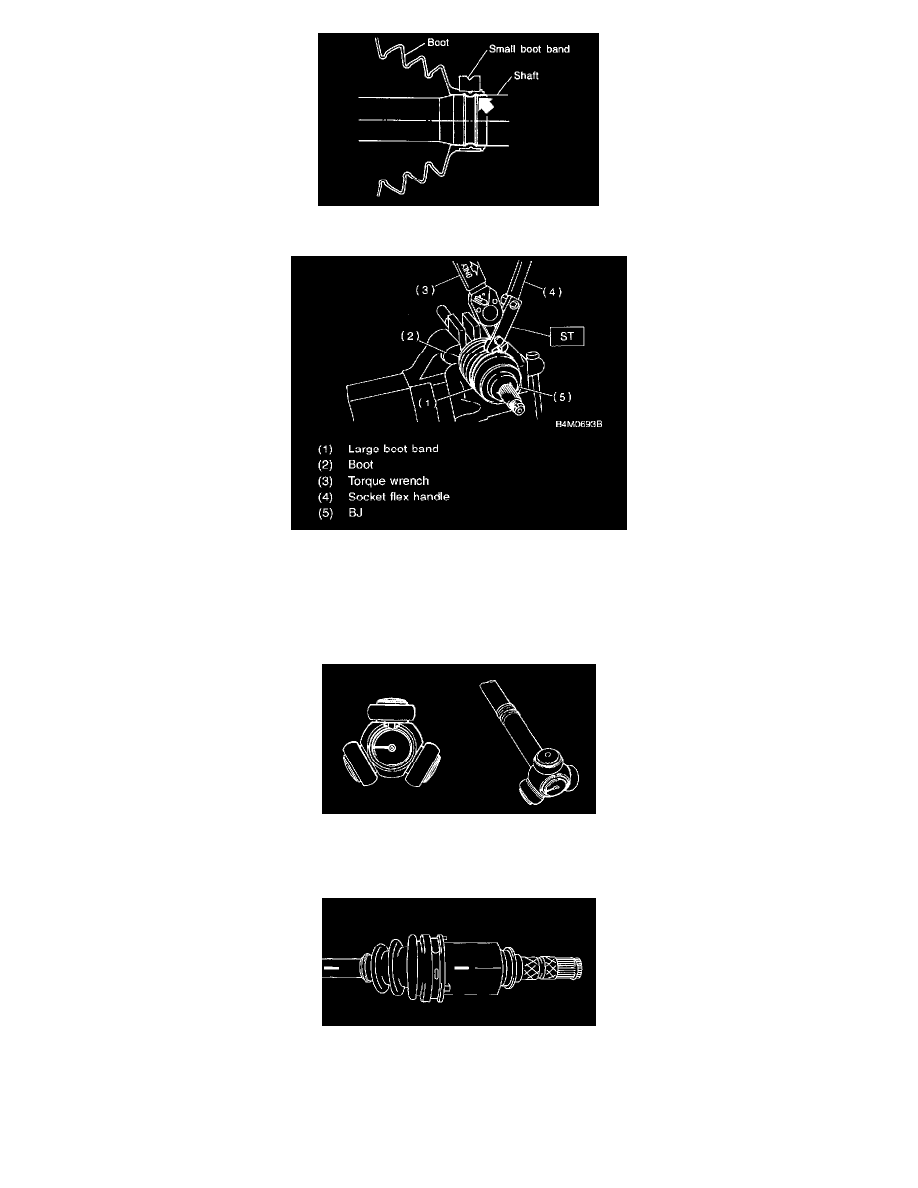

7. Install the boot projecting portion to shaft groove.
8. Tighten the boot bands using ST, torque wrench and socket flex handle.
ST 28099AC000 BOOT BAND PLIER
Caulked portion clearance of boot band:
Large boot band 1.3 mm (0.051 inch) or more
Small boot band 1.3 mm (0.051 inch) or more
9. Fit the AAR boot and retainer to shaft, and then position to center of shaft.
10. Align the alignment marks, and then install the trunnion shaft
11. Fill 100 to 110 g (3.53 to 3.88 oz) of specified grease into the interior of AAR outer race.
12. Apply a coat of specified grease to the free ring and trunnion.
13. Align the alignment marks on shaft and outer race, and then install the outer race.
14. Apply an even coat of the specified grease 30 to 40 g (1.06 to 1.41 oz) to the entire inner surface of boot.
15. Install the AAR boot taking care not to twist it.
NOTE:
^
The inside of the larger end of AAR boot and boot groove shall be cleaned so as to be free from grease and other substances.
