Forester F4-2.5L SOHC (2004)
^
When installing the AAR boot, position the outer race of AAR at center of its travel.

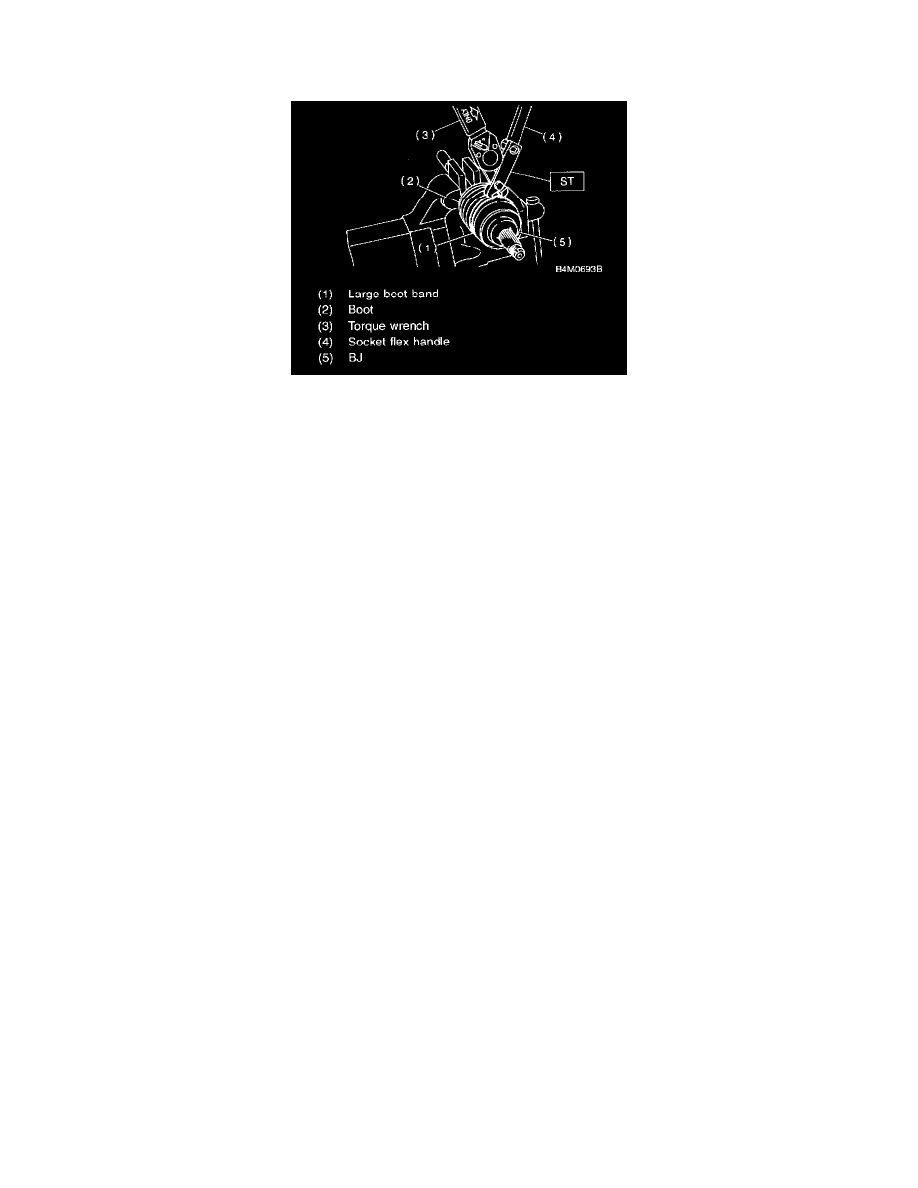

16. Install a new large boot band and small boot band in specified position.
17. Using the ST, torque wrench and socket flex handle, tighten the boot band.
ST 28099AC000 BOOT BAND PLIERS
Caulked portion clearance of boot band:
Large boot band 1 mm (O.04 inch) or less
Small boot band 1 mm (0.04 inch) or less
18. Extend and retract the AAR to provide equal grease coating.
