Forester F4-2.5L SOHC (2004)

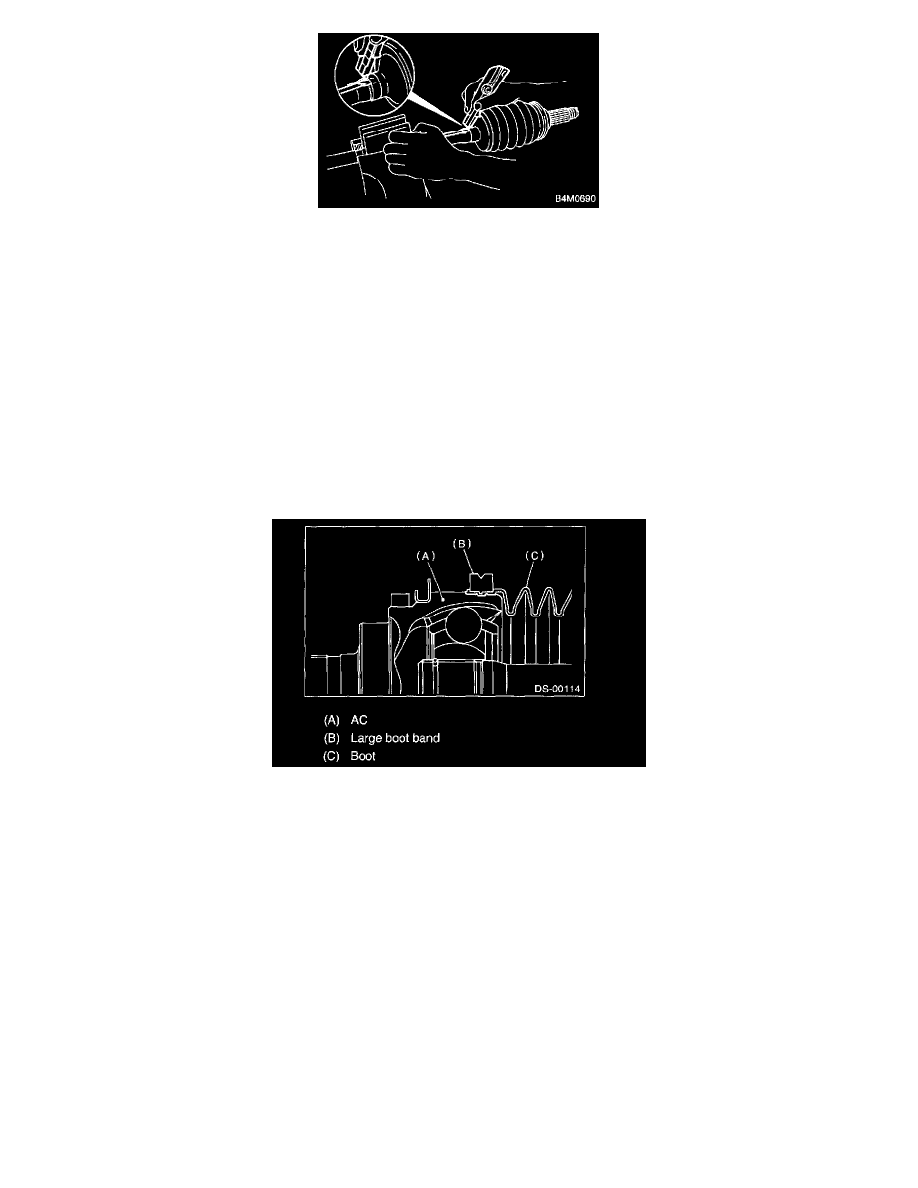

12. Cut and remove the boot.
13. Hit the AC joint inner race with hammer to remove AC joint from shaft.
Front Drive Shaft Assembly
ASSEMBLY
NOTE: Use specified grease.
AC side: HTB-J (Part No. 28395SA010)
AAR side: One Luber C (Part No. 28395SA000
1. Place the AC boot and small boot band on AC side of shaft.
NOTE: Be sure to wrap the shaft splines with vinyl tape to prevent boot from scratches.
2. Place the drive shaft in a vise.
NOTE: Do not place the drive shaft directly in the vise; use wooden blocks.
3. Apply a coat of specified grease [80 to 85 g (2.82 to 3.0 oz)] to AC.
