Impreza 2.5 RS Coupe F4-2.5L SOHC (2000)

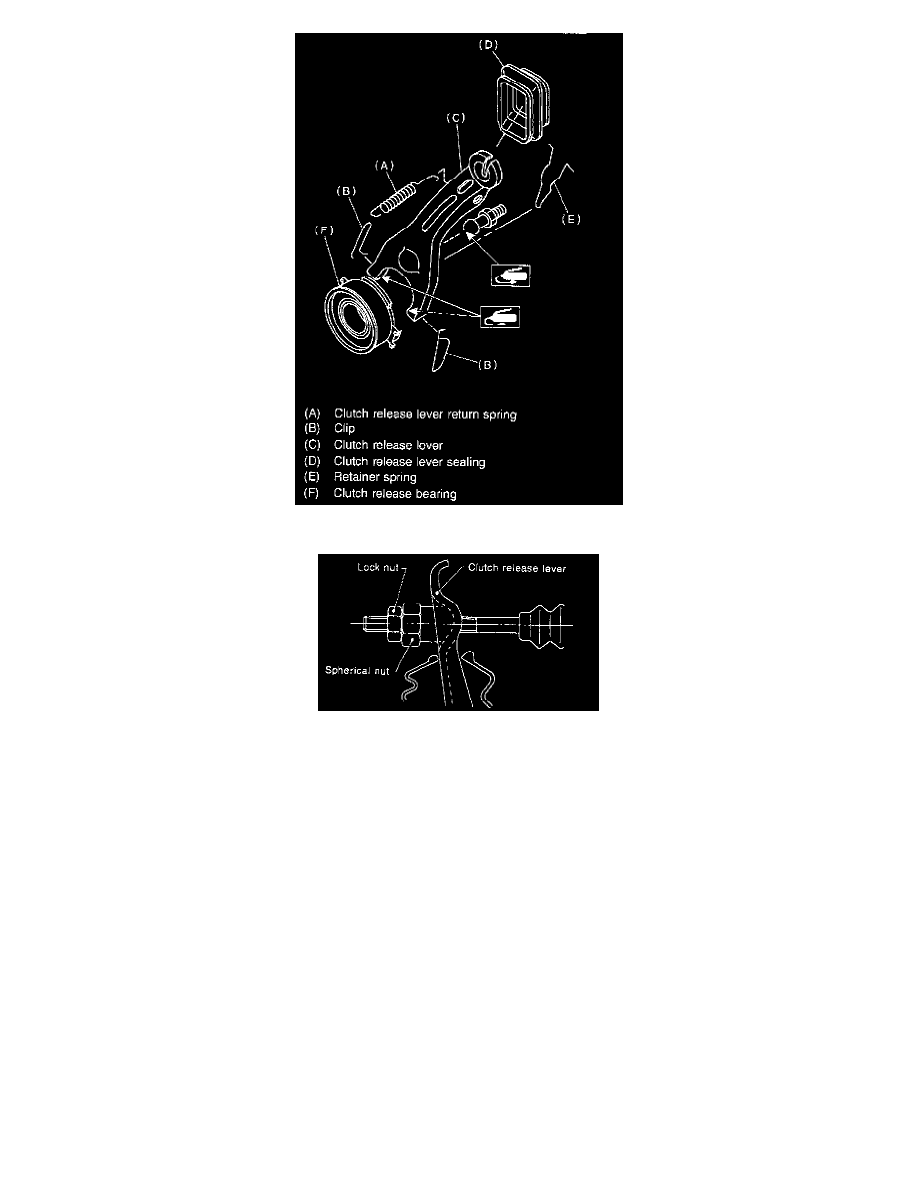

3. Install clutch release lever sealing.
4. After remounting engine and transmission on body, make adjustment of the clutch release lever end play.
CAUTION: Take care not to twist the cable during adjustment.
5. Install clutch release lever return spring.
NOTE: Hook up the return spring to right side hole of the clutch release lever.
Hydraulic Application Type
CAUTION: Before or during assembling, lubricate the following points with a light coat of grease.
-
Inner groove of clutch release bearing
-
Contact surface of lever and pivot
-
Contact surface of lever and bearing
-
Transmission main shaft spline (Use grease containing molybdenum disulphide.)
1. While pushing clutch release lever to pivot and twisting it to both sides, fit retainer spring onto the constricted portion of pivot.
NOTE:
-
Apply grease (SUNLIGHT 2: P/N 003602010) to contact point of clutch release lever and operating cylinder.
-
Confirm that retainer spring is securely fitted by observing it through the main case hole.
2. Install clutch release bearing and fasten it with two clips.
3. Install clutch release lever sealing.
