Impreza 2.5 RS Coupe F4-2.5L SOHC (2000)
2. Check the bearing for smooth rotation by applying pressure in the thrust direction.

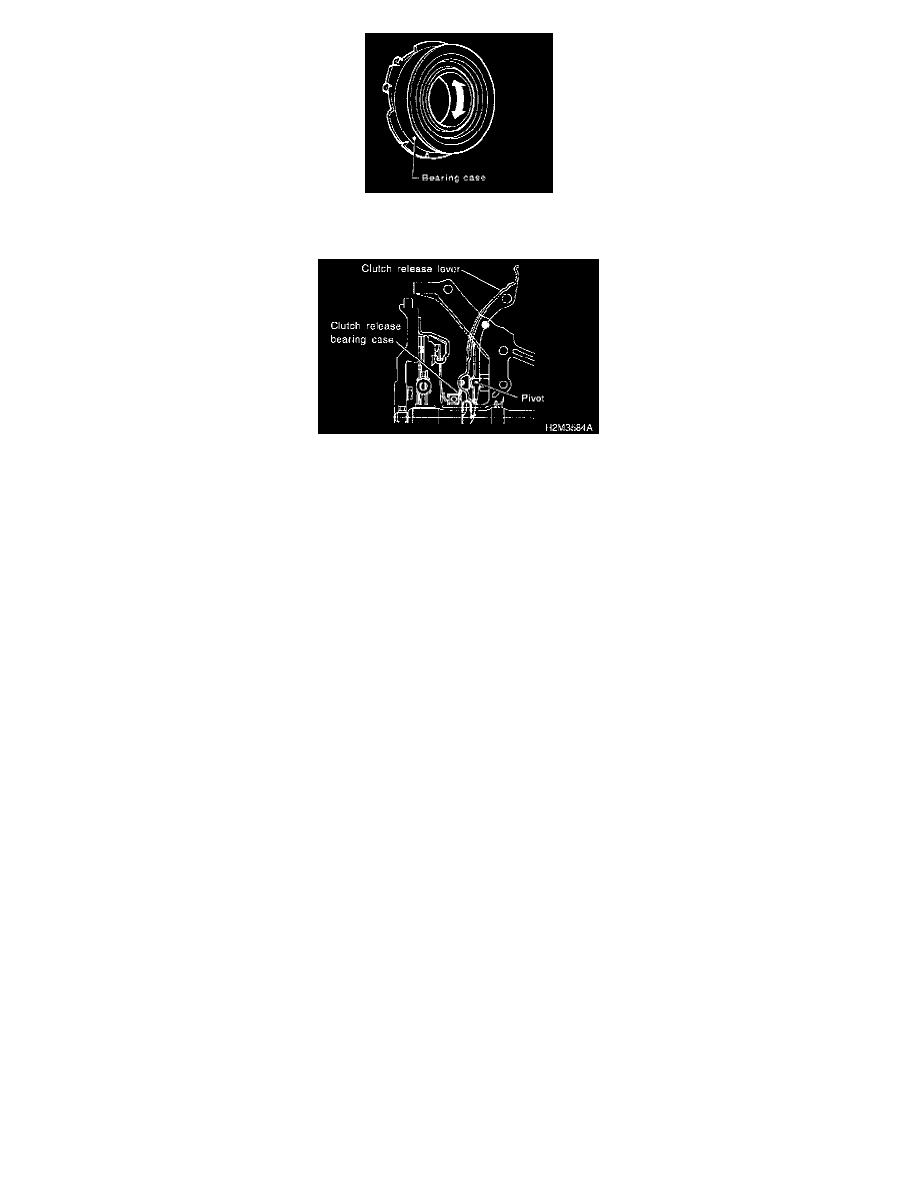

3. Check wear and damage of bearing case surface contacting with lever.
Clutch Release Lever
Check lever pivot portion and the point of contact with clutch release bearing case for wear.
C: INSTALLATION
Mechanical Application Type
CAUTION: Before or during assembling, lubricate the following points with a light coat of grease.
-
Contact surface of lever and pivot
-
Contact surface of lever and bearing
-
Transmission main shaft spline (Use grease containing molybdenum disulphide.)
1. While pushing clutch release lever to pivot and twisting it to both sides, fit retainer spring onto the constricted portion of pivot.
NOTE: Confirm that retainer spring is securely fitted by observing it through the main case hole.
2. Install clutch release bearing and fasten it with two clips.
