Impreza 2.5 RS Coupe AWD F4-2.5L SOHC (2001)
Camshaft: Service and Repair
A: REMOVAL
1. Remove V-belt.
2. Remove crankshaft pulley.
3. Remove timing belt assembly.
4. Remove camshaft sprocket.
5. Remove crankshaft sprocket.
6. Remove camshaft position sensor support. (LH side only)
7. Remove oil level gauge guide. (LH side only)
8. Remove valve rocker assembly.

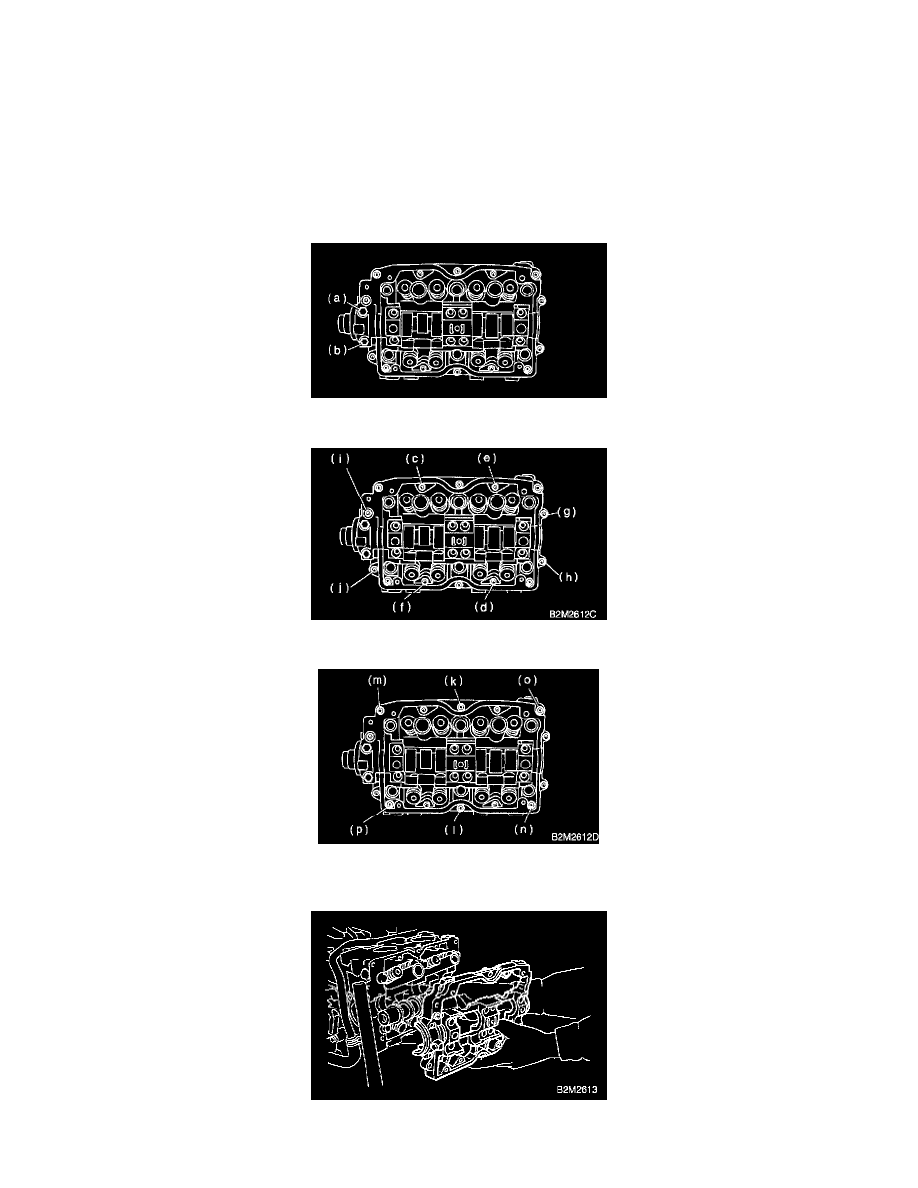

9. Remove camshaft cap.
a. Remove bolts (a) through (b) in alphabetical sequence.
b. Equally loosen bolts (c) through (j) all the way in alphabetical sequence.
c. Remove bolts (k) through (p) in alphabetical sequence using ST.
ST 499497000 TORX PLUS
d. Remove camshaft cap.
10. Remove camshaft.
