Impreza 2.5 RS Coupe AWD F4-2.5L SOHC (2001)
11. Remove oil seal.
12. Remove plug from rear side of camshaft.
CAUTION:
^
Do not remove oil seal unless necessary.
^
Do not scratch journal surface when removing oil seal.

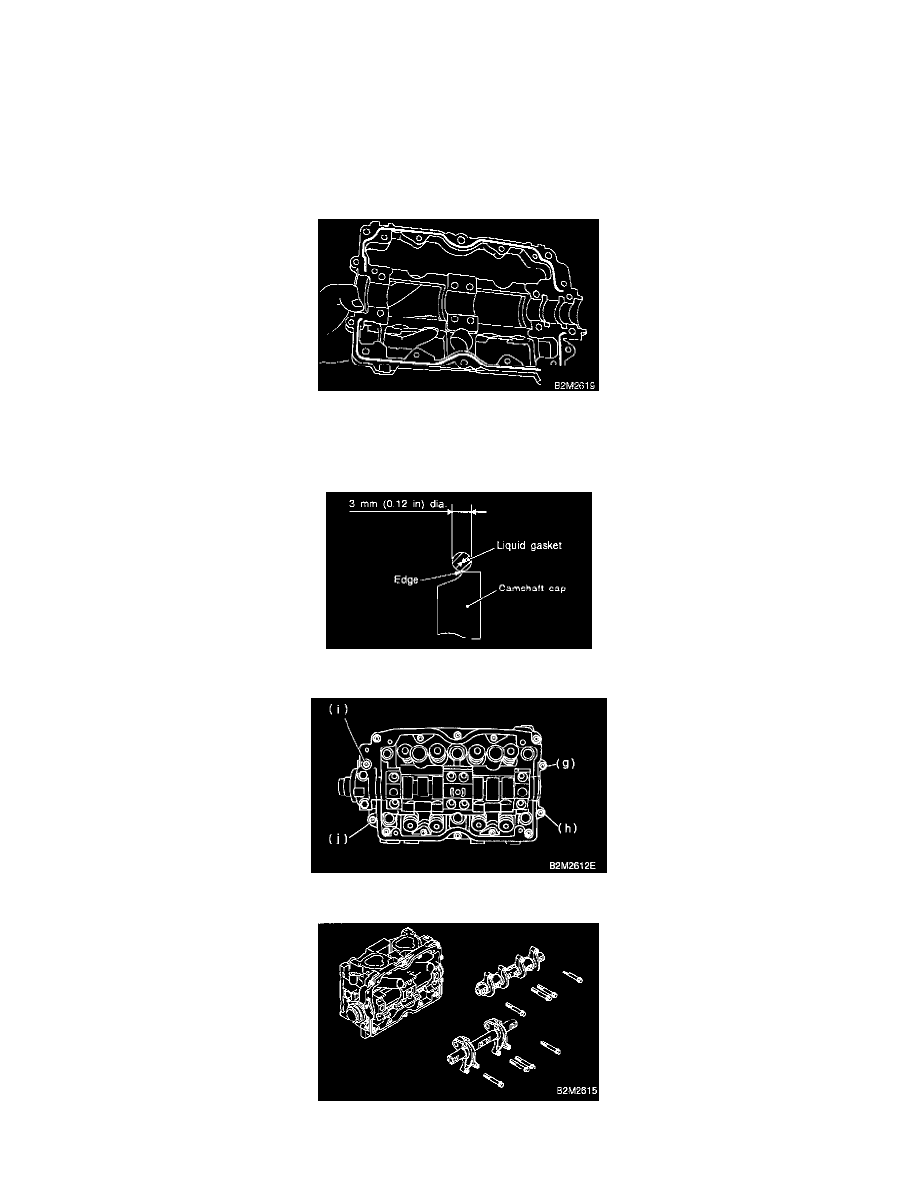

B: INSTALLATION
1. Apply a coat of engine oil to camshaft journals and install camshaft.
2. Install camshaft cap.
a. Apply liquid gasket on the around of camshaft cap.
Liquid gasket:
THREE BOND 1280B
PINK 0877YA018
NOTE: Apply a coat of 3 mm (0.12 inch) dia. liquid gasket along edge of cam cap mating surface.
b. Temporarily tighten bolts (g) through (j) in alphabetical sequence.
c. Install valve rocker assembly.
