Impreza 2.5 RS Coupe AWD F4-2.5L SOHC (2001)
INSTALLATION
Install in the reverse order of removal. Observe the following instructions.
^

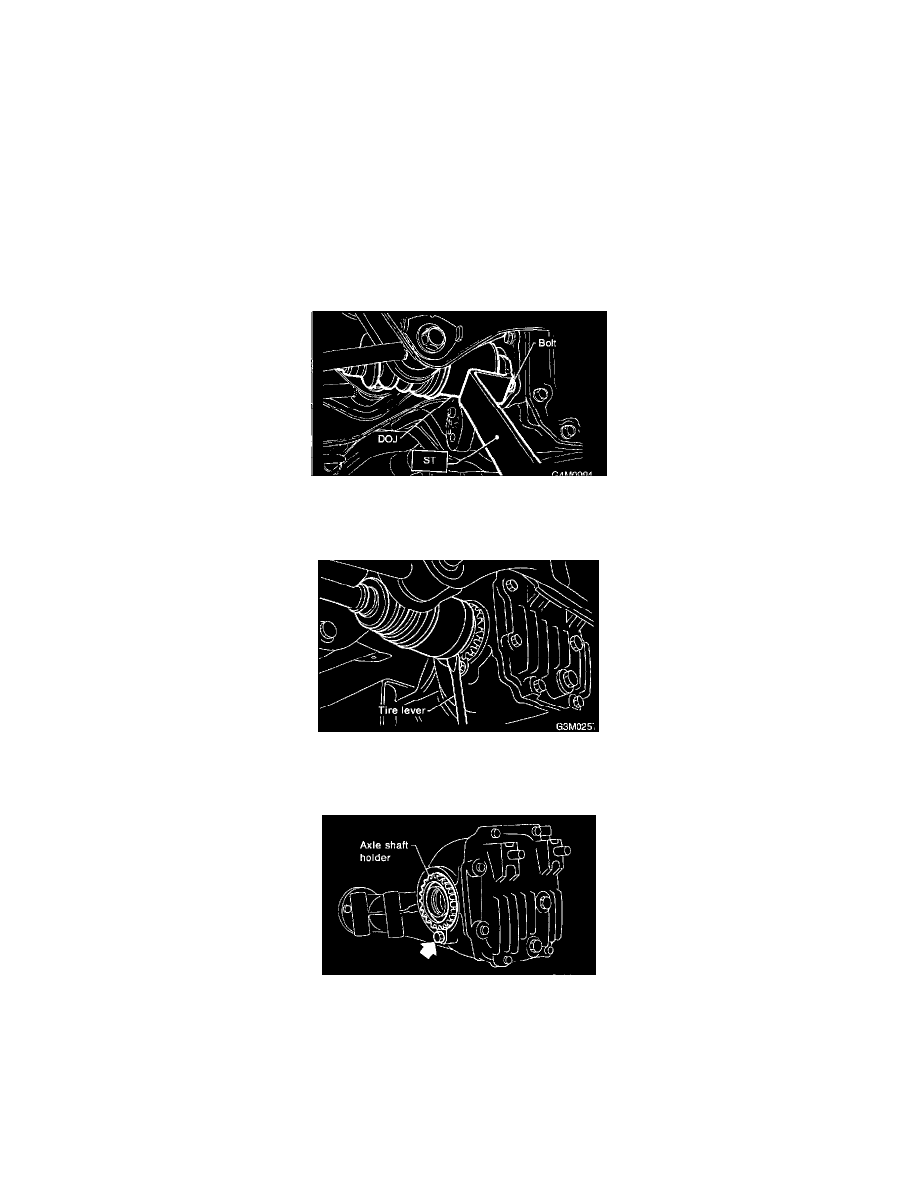

Installation of DOJ to differential: Transmission and Drivetrain; Drive Axles, Bearings and Joints.
CAUTION:
^
Do not allow DOJ splines to damage side oil seal.
^
Always tighten rubber bushing location when wheels are in full contact with the ground and vehicle is curb weight.
^
Tighten nut when installing adjusting bolt.
^
Replace self-locking nut and DOJ circlip with new ones.
NOTE: Check wheel alignment and adjust if necessary.
DISASSEMBLY

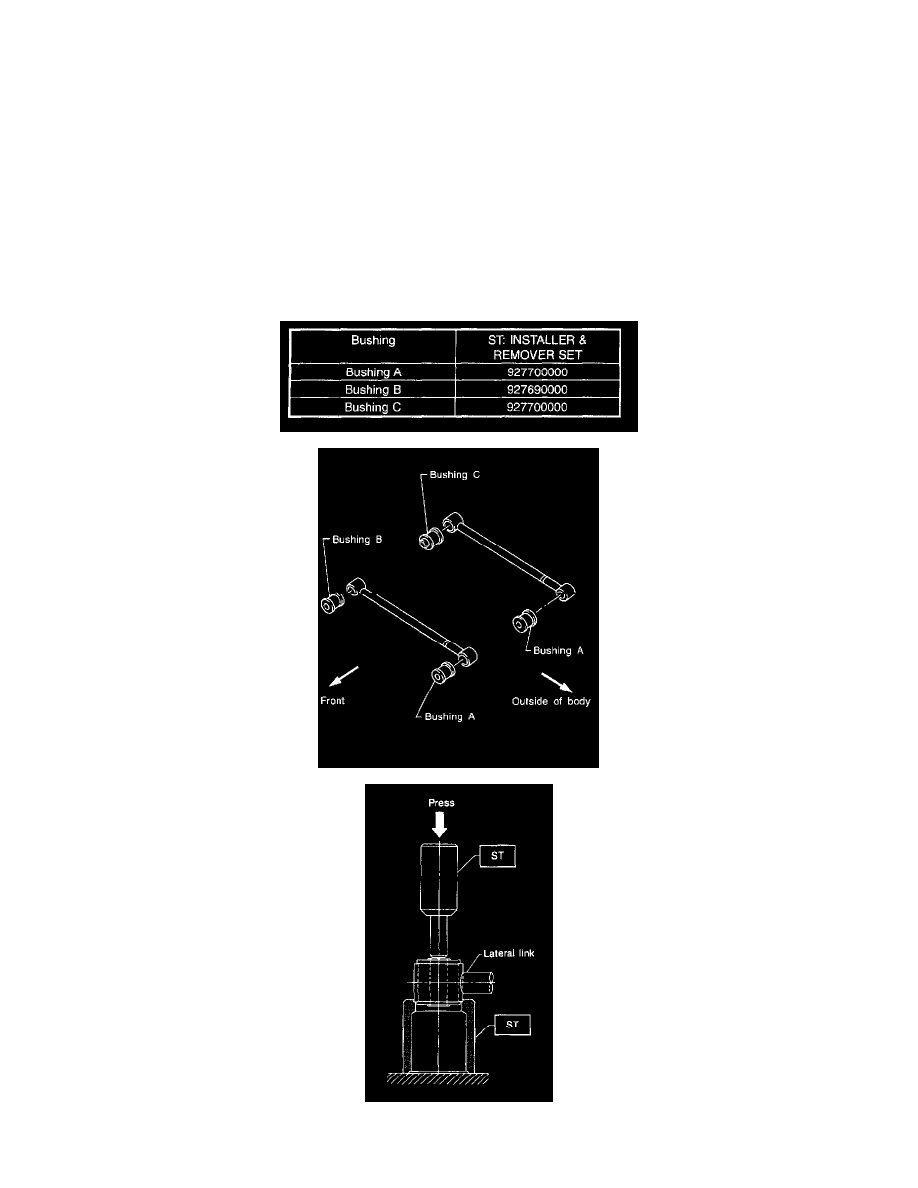

Using ST, press bushing out of place.
NOTE:
