Impreza 2.5 RS Sedan AWD F4-2.5L SOHC (2002)
Fuel Supply Line: Service and Repair

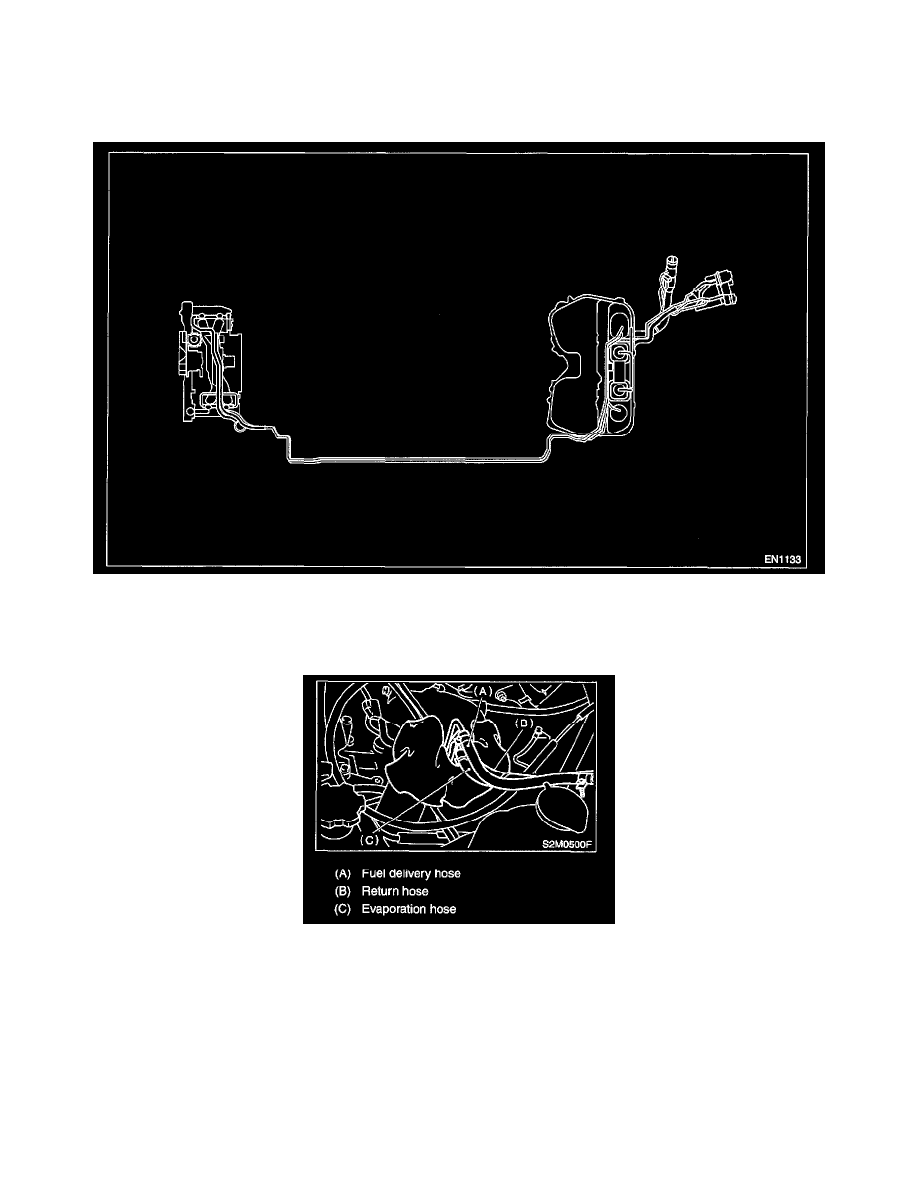

Fuel Delivery, Return and Evaporation Lines
REMOVAL
1. Set the vehicle on the lift.
2. Release the fuel pressure. <Ref. to RELEASING OF FUEL PRESSURE, OPERATION, Fuel.>
3. Open the fuel filler flap lid and remove the fuel filler cap.
4. Remove the floor mat.
5. Remove the fuel delivery pipes and hoses, fuel return pipes and hoses, evaporation pipes and hoses.
6. In engine compartment, detach the fuel delivery hoses, return hoses and evaporation hose
7. Lift-up the vehicle.
