Impreza GT F4-2.5L Turbo (2009)
^
Adjustment

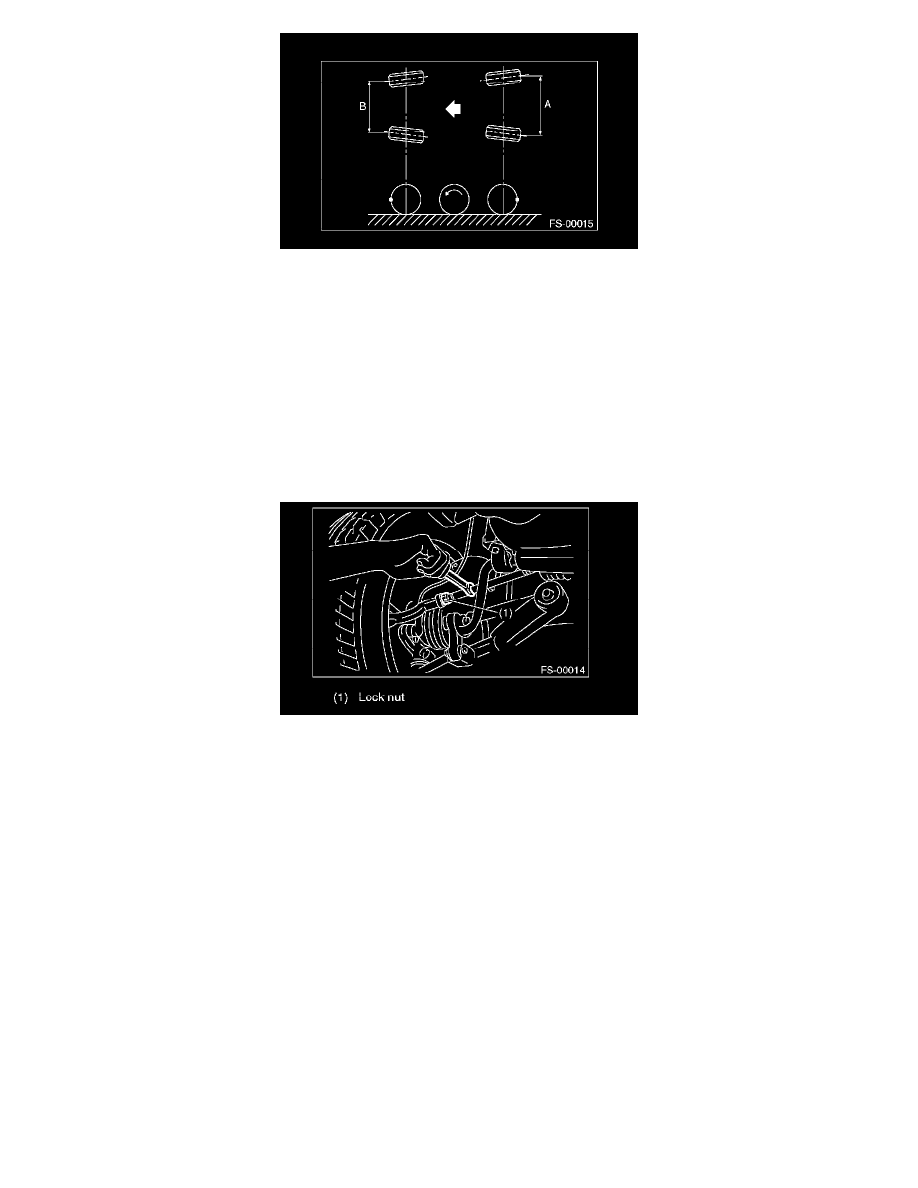

When adjusting the toe-in, adjust it to the following value.
Toe-in:
0±2 mm (0±0.08 in)
1) Check that the left and right wheel steering angles are within specification.
2) Loosen the left and right side steering tie-rod lock nuts.
3) Turn the left and right tie-rods by equal amounts until the toe-in is at the specification.
Both the left and right tie-rods are right hand threaded. To increase toe-in, turn both tie-rods clockwise by equal amount (viewing from the inside of
vehicle).
4) Tighten the tie-rod lock nut.
Tightening torque:
85 N-m (8.7 kgf-m, 62.7 ft-lb)
NOTE:
Check and correct the tie-rod boot if twisted.
REAR WHEEL TOE-IN
^
Inspection
Toe-in:
0±3 mm (0±0.12 in)
Refer to FRONT WHEEL TOE-IN for rear toe-in inspection procedures. See: Specifications/Front Suspension
^
ADJUSTMENT
When adjusting, adjust it to the following value.
Toe-in:
0±2 mm (0±0.08 in)
