Timing Belt: Service and Repair

Make

Subaru

Model

Impreza GT F4-

Engine

2.5L Turbo

Year

2009

Section

Timing Belt › Service and Repair

MaintenanceService and Repair · page 1 of 13

Timing Belt: Service and Repair

Timing Belt

REMOVAL

NOTE:
Perform the work with the engine installed to body when replacing a single part.

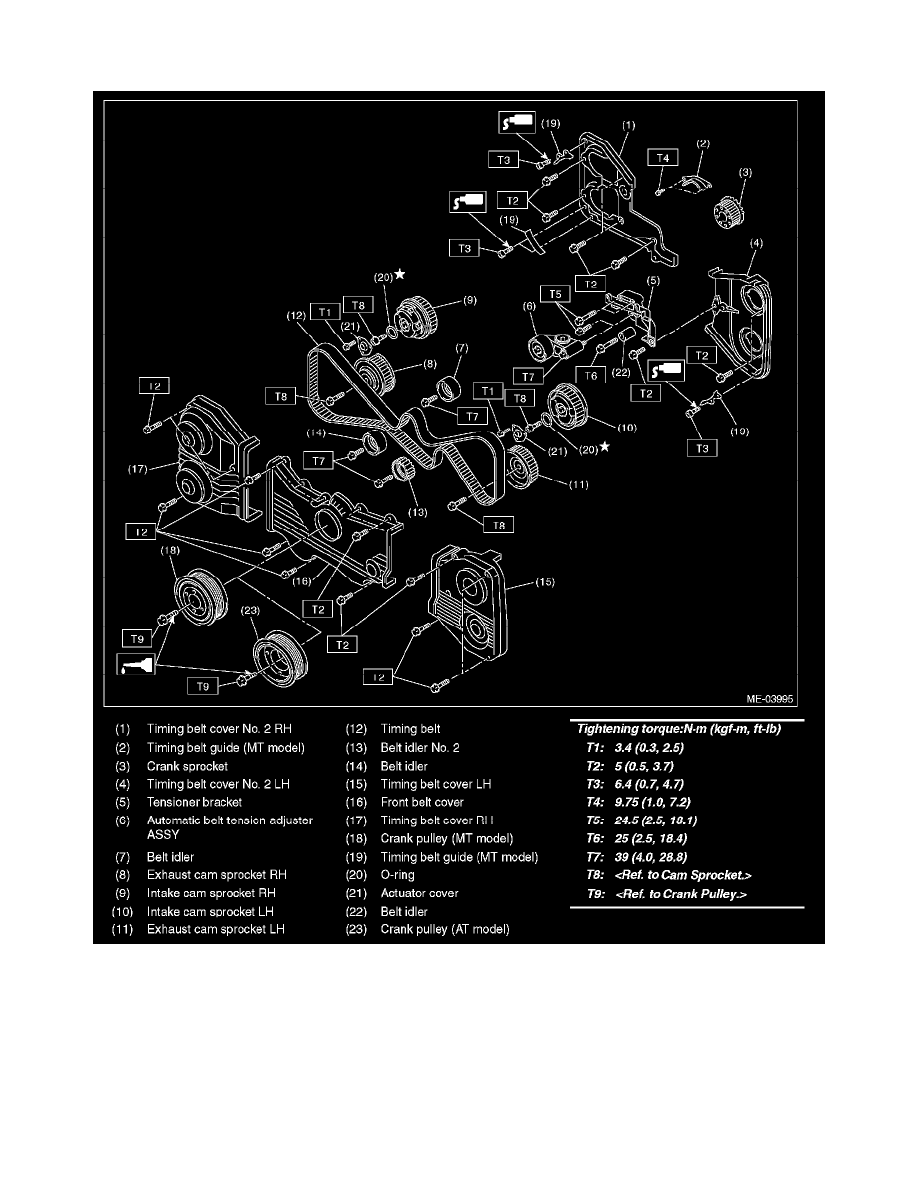

TIMING BELT

1) Remove the V-belts.
2) Remove the crank pulley.
3) Remove the timing belt cover.
4) Remove the timing belt guide. (MT model)
