Drive Belt: Diagrams
- Make
- Subaru
- Model
- Impreza Wagon AWD F4-
- Engine
- 1820cc 1.8L SOHC
- Year
- 1993
- Section
- Drive Belt › Diagrams
MaintenanceDiagrams · page 1 of 3

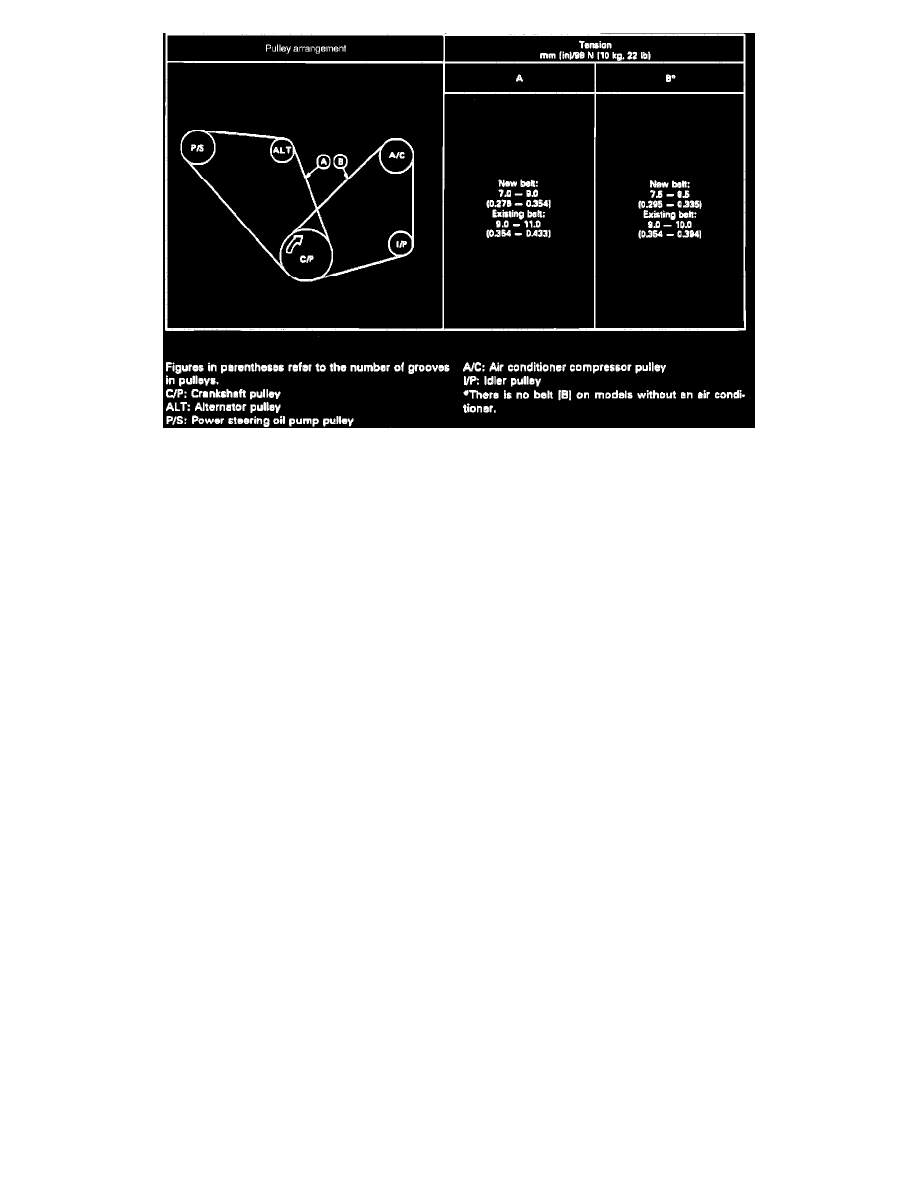

Fig. 59 Drive Belt Routing & Tension Data
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
