Page 3
background image

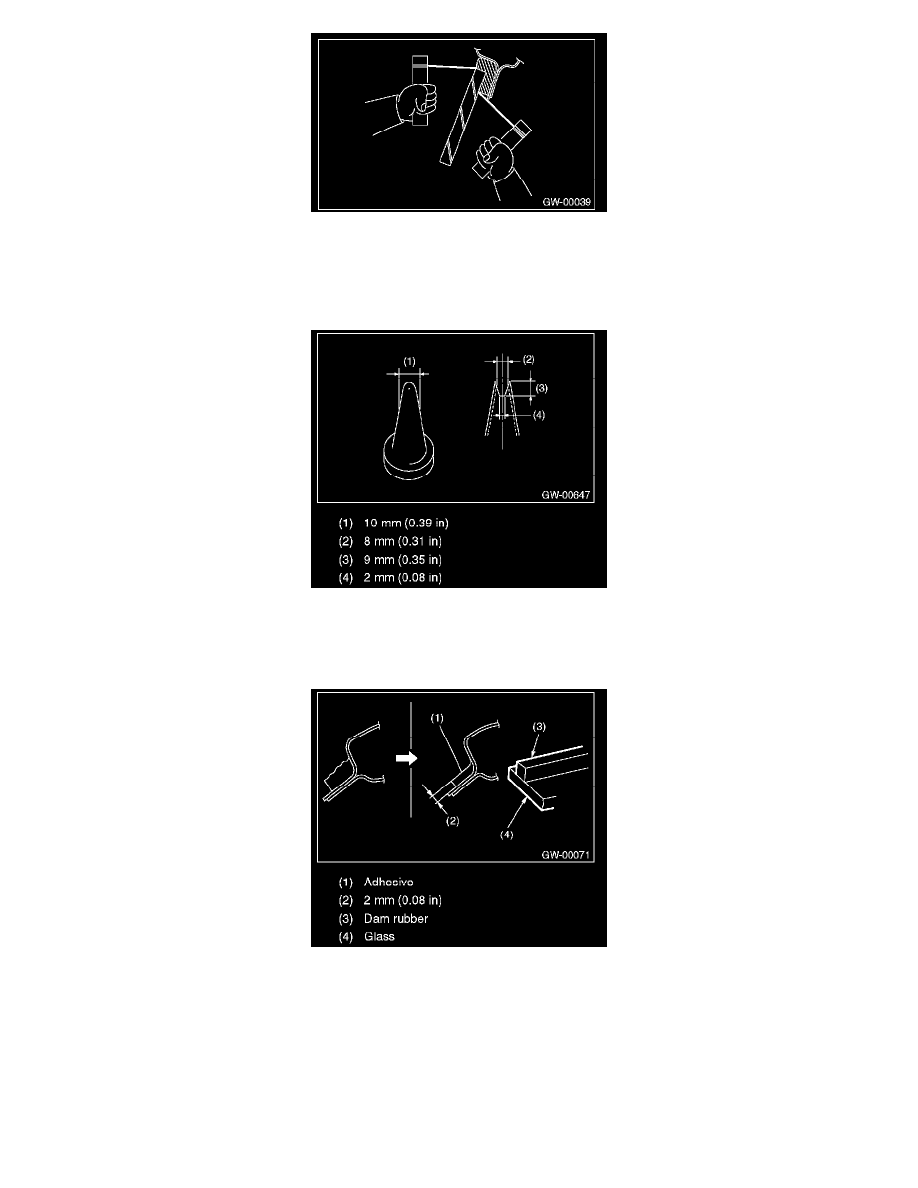

7. Pull the wire ends alternately to cut off the adhesive part.

INSTALLATION

1. Process the cartridge nozzle tip as shown in the figure, and set the adhesive in sealant gun.

2. Clean the external circumference of windshield glass with alcohol or white gasoline.
3. Remove the adhesive layer on the body using cutter knife to obtain smooth face of 2 mm (0.08 in) thick.

CAUTION:  Be careful not to damage the body and paint surface.

4. Clean the body with alcohol or white gasoline to eliminate cutting powder, dust and dirt completely from body.
5. Install the dam rubber.
