Timing Belt: Testing and Inspection
INSPECTION
TIMING BELT
1. Check the timing belt teeth for breaks, cracks and wear. If any fault is found, replace the timing belt.
2. Check the condition of the backside of timing belt. If cracks are found, replace the timing belt.
CAUTION:
^
Be careful not to let oil, grease or engine coolant contact the belt. Remove quickly and thoroughly if this happens.
^

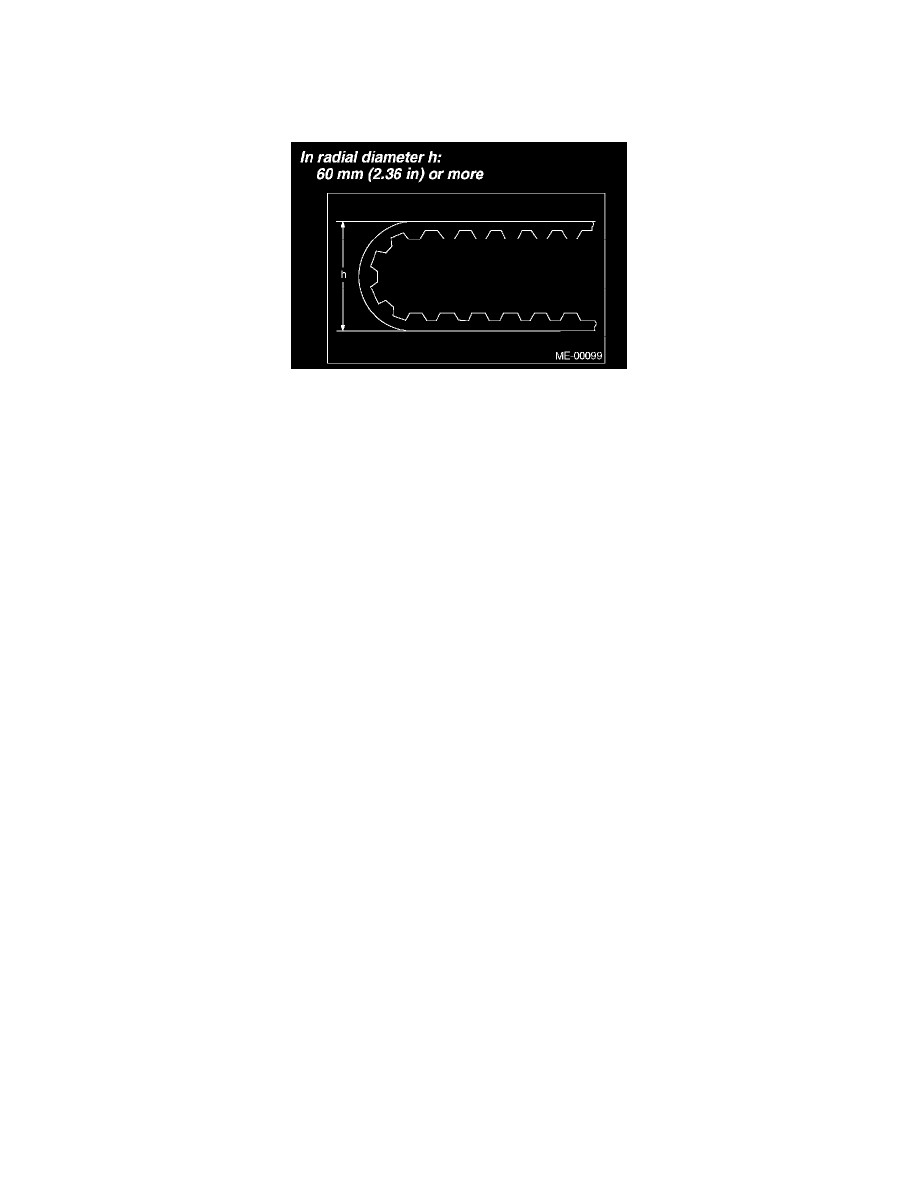

Do not bend the timing belt sharply.
