Outback F6-3.0L (2003)

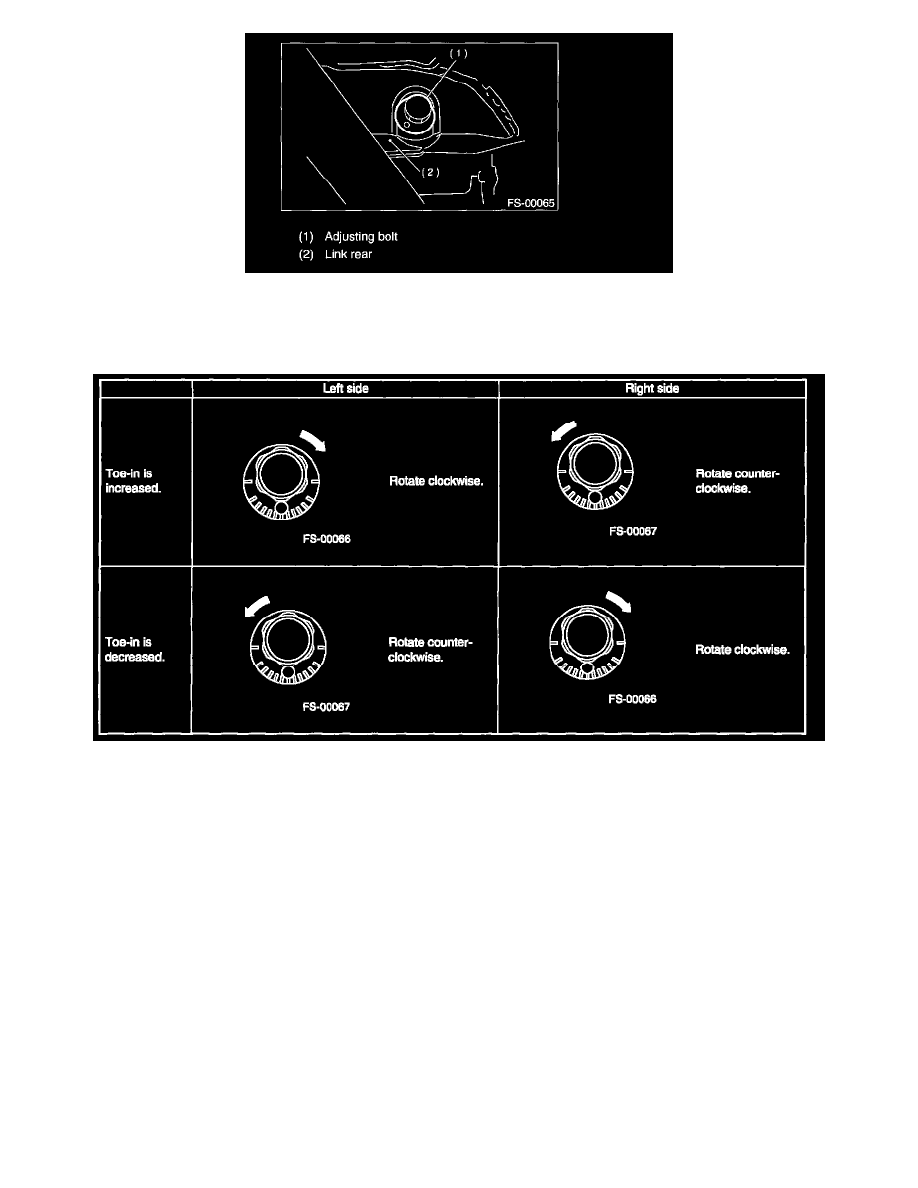

CAUTION: When loosening or tightening adjusting bolt, hold bolt head and turn self-locking nut.
Discard loosened self-locking nut and replace with a new one.
2. Turn adjusting bolt head until toe-in is at the specification.
NOTE: When left and right wheels are adjusted for toe-in at the same time, the movement of one scale graduation changes toe-in by approximately 3
mm (0.12 inch).
3. Tighten self-locking nut.
Tightening torque: 120 Nm (12.2 kgf-m, 88 ft. lbs.)
THRUST ANGLE
Inspection
1. Position vehicle on a level surface.
2. Move vehicle 3 to 4 meters directly forward.
3. Determine locus of both front and rear axles.
4. Measure distance "L" between center line of location of the axles.
