Outback F6-3.0L (2003)

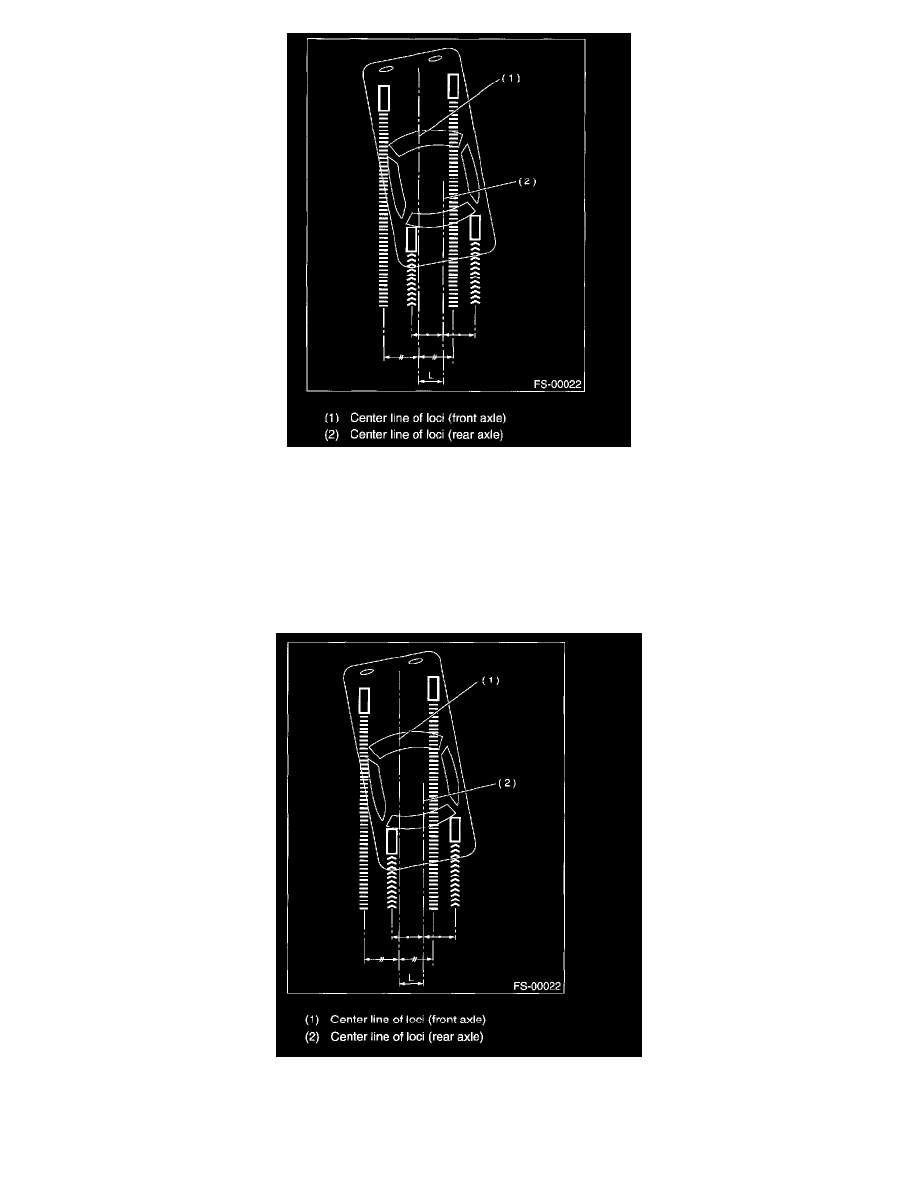

Thrust angle:
Less than 30' when "L" is equal to or less than 23 mm (0.91 inch).
Adjustment
1.
Make thrust angle adjustments by turning toe-in adjusting bolts of rear suspension equally in the same direction.
2.
When one rear wheel is adjusted in a toe-in direction, adjust the other rear wheel equally in toe-out direction, in order to make thrust angle
adjustment.
3.
When left and right adjusting bolts are turned incrementally by one graduation in the same direction, the thrust angle will change
approximately 10' ["L" is almost equal to 7.5 mm (0.295 inch)].
Thrust angle:
0° ± 30'
