Equator 4WD V6-4.0L (2010)
5) Push the vehicle slowly ahead to rotate the wheels 180 degrees (1/2 a turn).
CAUTION:
If the wheels have rotated more than 180 degrees (1/2 turn), start this procedure again from the beginning. Never push the vehicle
backward.

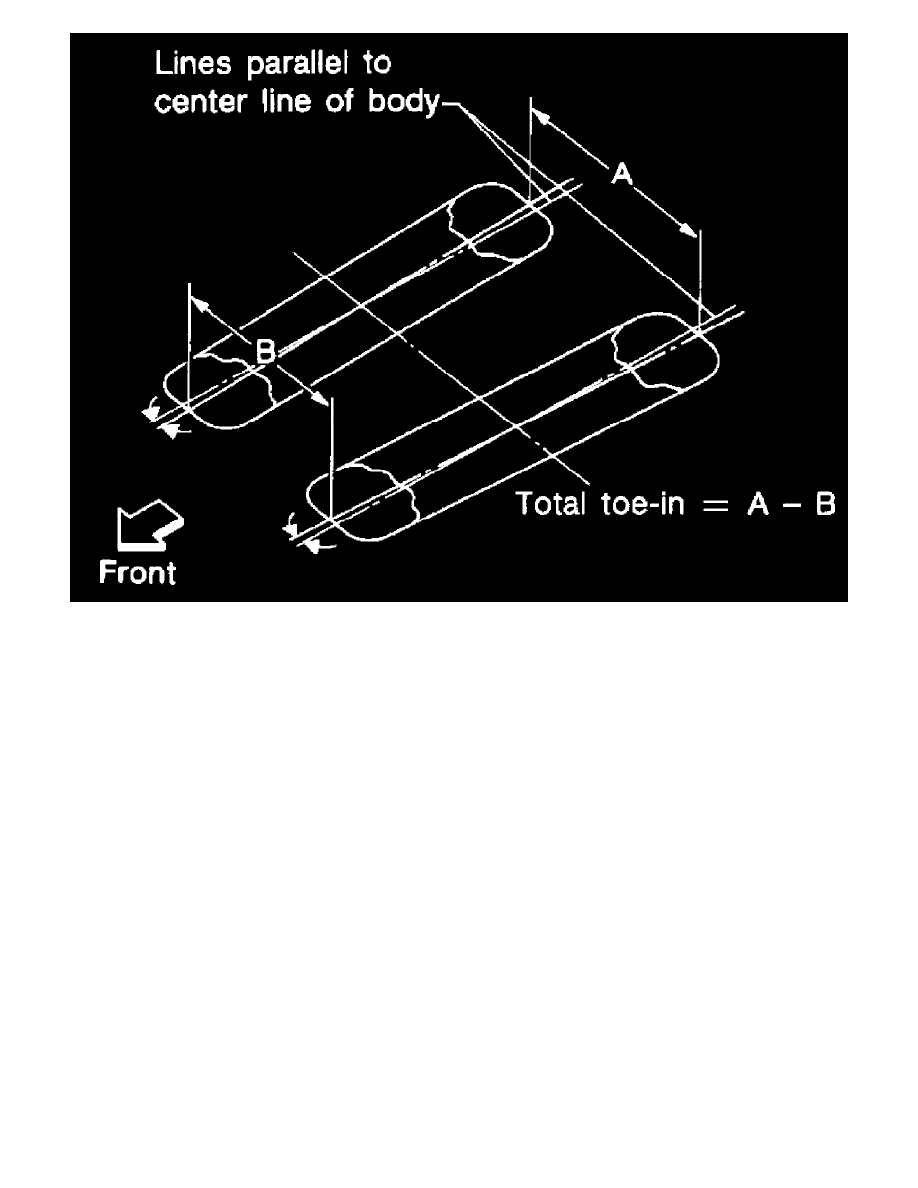

6) Measure the distance (B) on the front side of the front tires at the same marks as shown. Total toe-in is calculated as (A - B).
Total toe-in : Refer to [Service Data and Specifications].
7) Adjust the toe-in by varying the length of the steering outer tie-rods.
