a) Loosen the outer tie-rod lock nuts.
b) Adjust the toe-in by screwing the outer tie-rods in or out.

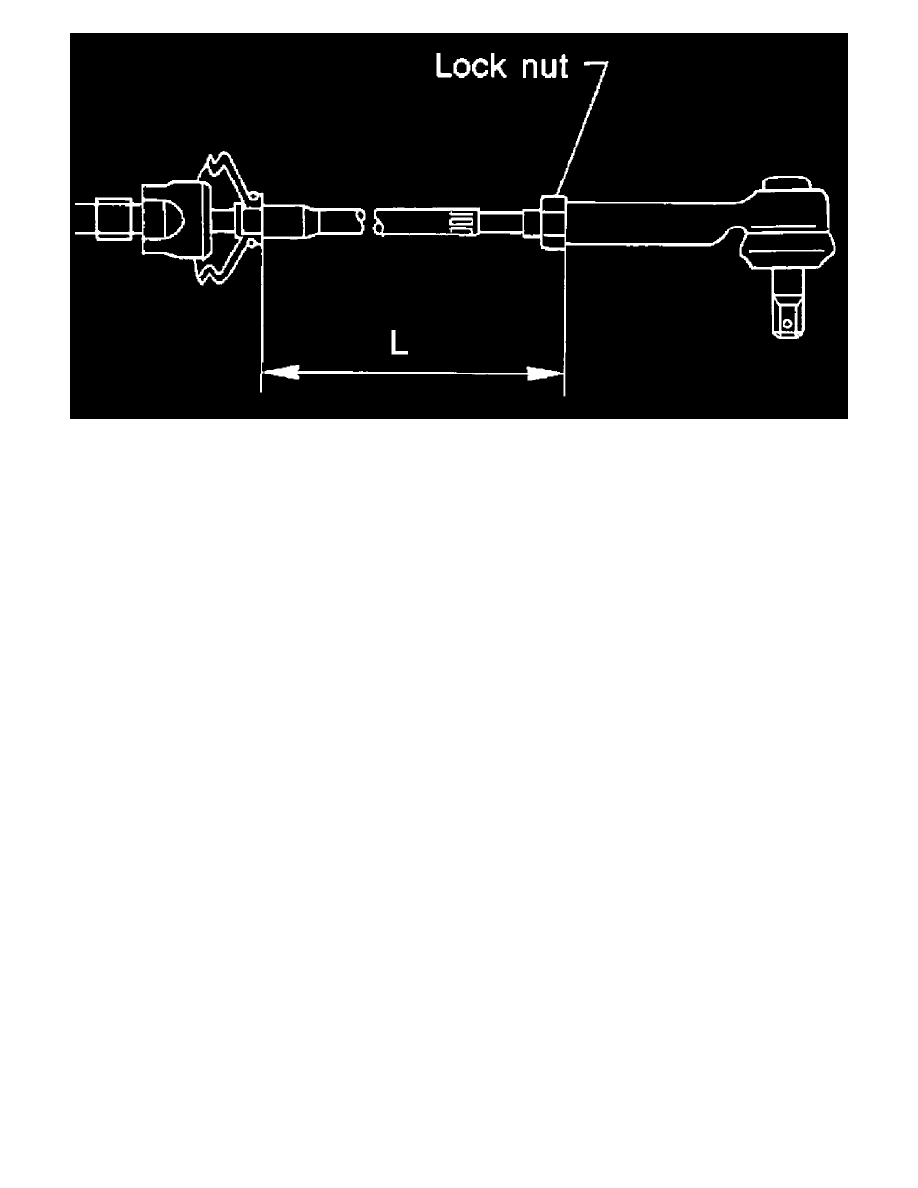

Standard length [L] : Refer to [Service Data and Specifications].
c) Tighten the outer tie-rod lock nuts to specification.
Lock nut : Refer to [Steering Gear and Linkage: Disassembly and Assembly].
Front Wheel Turning Angle
NOTE:
Check front wheel turning angle after the toe-in inspection.
1) Place front wheels on turning radius gauges in straight ahead position and rear wheels on stands so that vehicle can be level. Check the maximum
inner and outer wheel turning angles for LH and RH road wheels.
