Alignment: Specifications (page 7 of 11)
- Make
- Suzuki
- Model
- Equator 4WD
- Engine
- V6-4.0L
- Year
- 2010
- Section
- Alignment
MaintenanceSpecifications · page 7 of 11
CAUTION:
After adjusting the camber then check the toe-in.
NOTE:

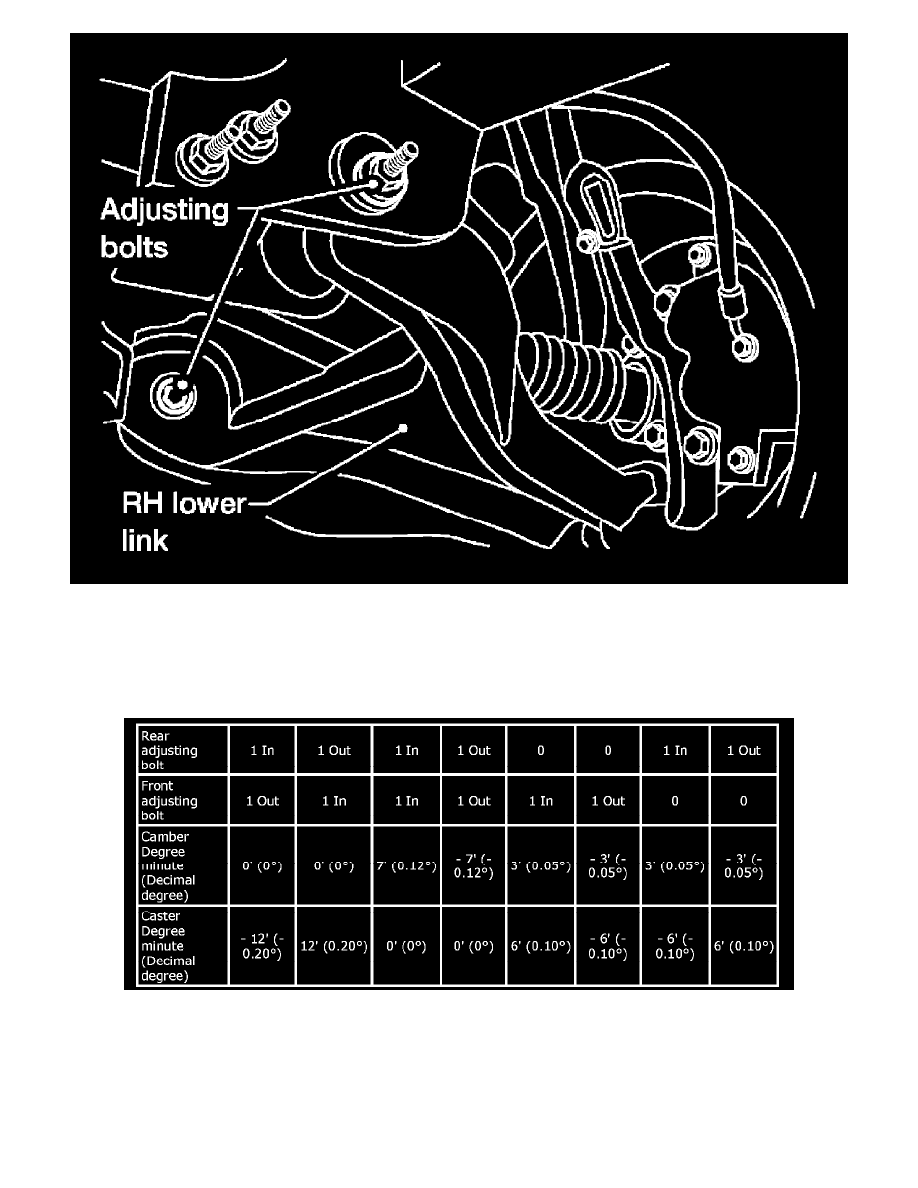

Camber changes about 3' (0.05 degrees) minutes with each graduation of one adjusting bolt. Refer to table below for examples of lower link
adjusting bolt effect on camber and caster.
3) Tighten the adjusting bolt nuts to specification.
Toe-In
WARNING:
^
Always perform the following procedure on a flat surface.
^
Make sure that no person is in front of the vehicle before pushing it.
