Esteem GL Wagon L4-1.6L (1998)

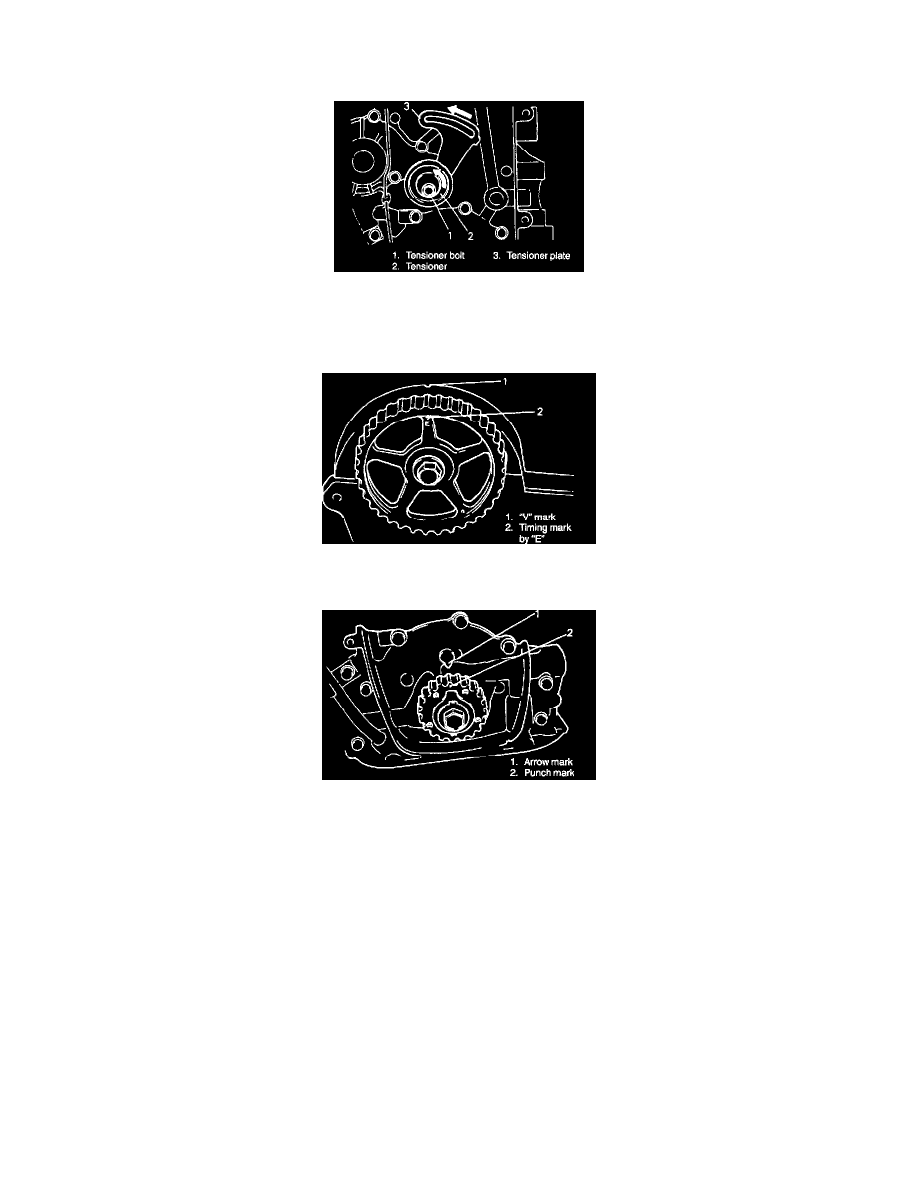

1. Install tensioner plate to tensioner.
Insert lug of tensioner plate into hole in tensioner.
2. Install tensioner and tensioner plate:
Do not tighten tensioner bolt with wrench yet. Hand tighten only at this time.
Check to ensure that plate movement in arrow direction as shown in figure causes tensioner to move in the same direction. If no associated
movement between plate and tensioner occurs, remove tensioner and plate again and reinsert plate lug into tensioner hole.
3. Check that timing mark on camshaft timing belt pulley is aligned with "V" mark on cylinder head cover. If not, align two marks by turning
camshaft but be careful not to turn it more than its allowable turning range which is described in PRECAUTION.
4. Check that punch mark on crankshaft timing belt pulley is aligned with arrow mark on oil pump case. If not, align two marks by turning crankshaft
but be careful not to turn it more than its allowable turning range which is described in PRECAUTION.
