Timing Belt: Specifications (page 6 of 9)
- Make
- Suzuki
- Model
- Esteem GL Wagon
- Engine
- L4-1.6L
- Year
- 1998
- Section
- Timing Belt
MaintenanceSpecifications · page 6 of 9
CAUTION:
^

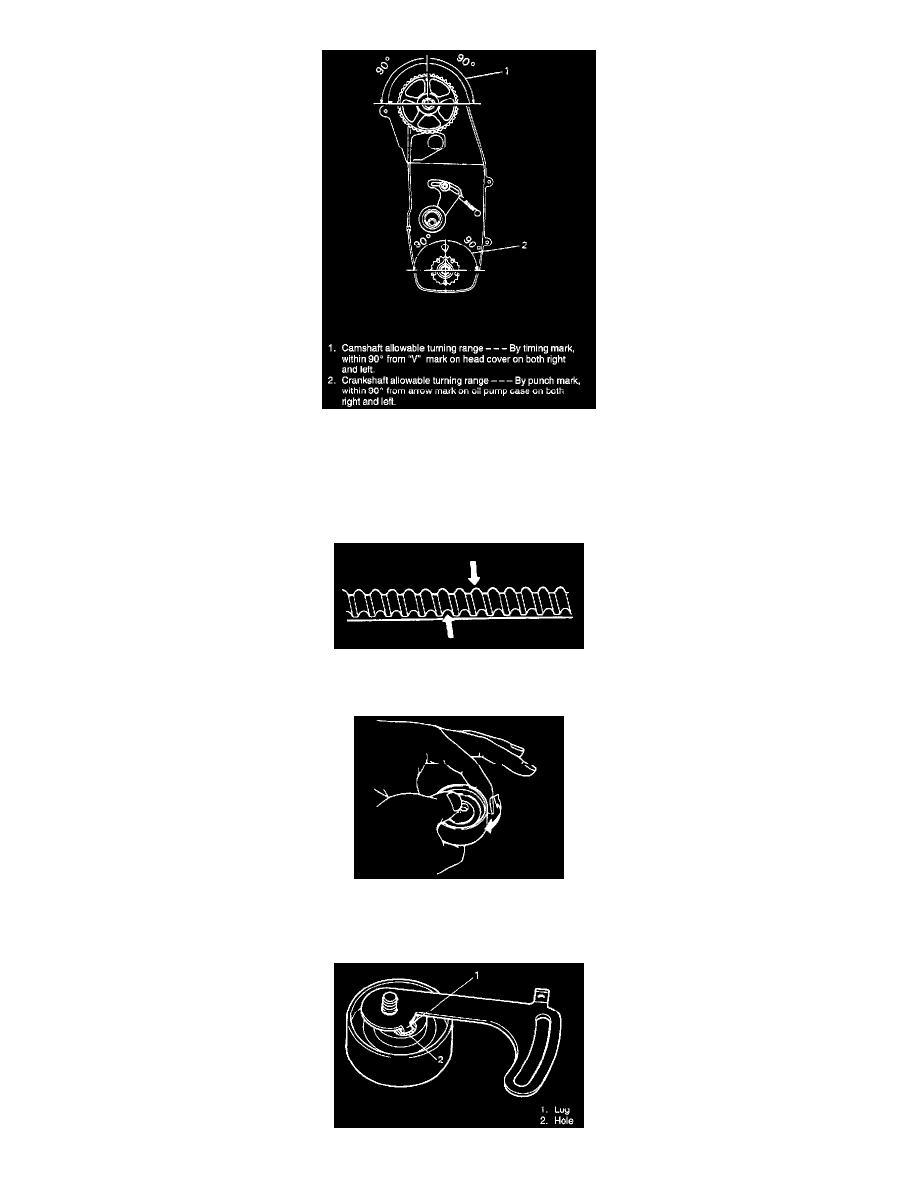

After timing belt is removed, never turn camshaft and crankshaft independently more than such an extent as shown in figure. If turned, interference
may occur among piston and valves, and parts related to piston and valves may be damaged.
^
Never bend timing belt.
INSPECTION
^
Inspect timing belt for wear or crack.
Replace it as necessary.
^
Inspect tensioner for smooth rotation.
INSTALLATION
