Esteem GLX L4-1.6L (1997)
Cruise Control Servo Cable: Adjustments
1. Disconnect battery ground cable.
2. Remove actuator cover, loosen lock nuts.

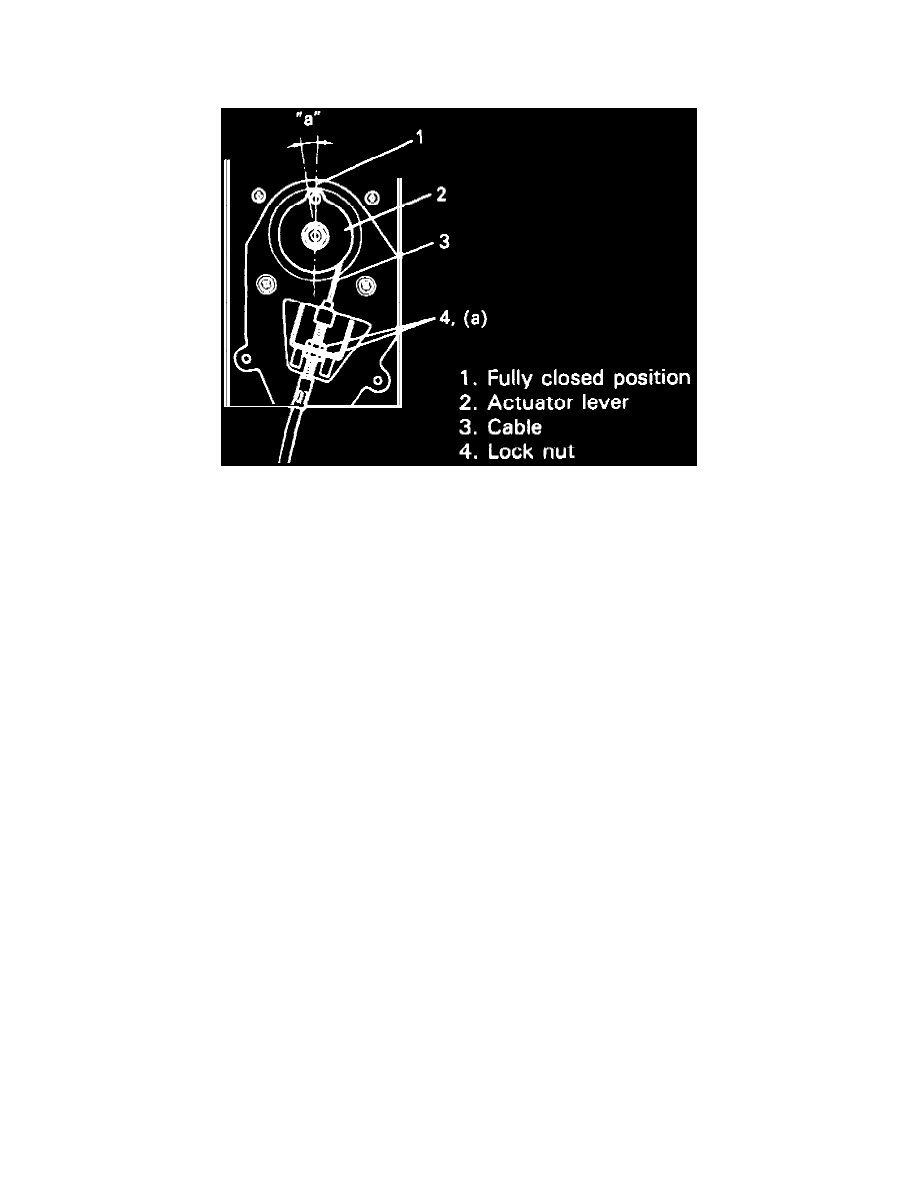

Fig. 2 Servo Cable Adjustment.
3. Adjust cable to obtain 0.04-0.08 of an inch play, Fig. 6, with actuator lever fully closed.
4. Torque locknuts to 4 ft. lbs.
